Environment-Friendly Multifunctional Biomass Pellet Machine Wood Pellet Production Line

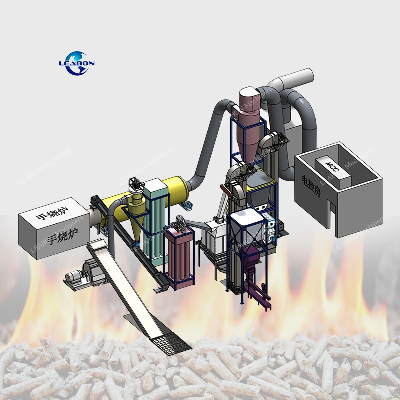

Environment-friendly Multifunctional Biomass Pellet Machine Wood Pellet Production Line  Introduction of wood pellet mill:This system wood pellet mill pellet press pellet maker for feeds is suitable for making different kind of material such as sawdust, rice husk, paddy straw, sunflower stalk,hulls, forestry wastes into wood pellets etc. It has been installed with the KAF gear reducer and electrical control box. It also can make the corn, oil cake for the feed stuff, which it could be feed pellets for the fish, chicken, animal, etc.Flow chart of complete waste wood pellet line:Detailed parameters of equipment list:1.Wood crusher(9FH1200)1)Woodwaste feeding conveyor: 7.5m length, 600mm width, 7.5kw.2) Wood crusher:    Main power: 90kw.    Blades: 9pcs.    Hammers: 40pcs.    Screen size: 5mm.    Capacity: 3.0-4.0Ton/Hour 3-5mm wooddust.3)Wooddust discharging belt conveyor: 6m length, 800mm width, 2.2kw.4) Feeding wood waste: 50-100mm diameter.2.Screw conveyor(TLSS32)1) Diameter of conveyor: 320mm.2) Function: convey the wooddust to bucket elevator.3.Bucket elevator(TDTG-26)1) Height: 10m.2) Function: lifting dried wooddust to silo of pellet machine.  4.Pellet Machine with silo(LH-508)1)Stainless Steel Pellet Die Chamber and Backing Plate with Metal-to-Meal Seal.2)Stainless Steel force feeder.3)One 6mm hole Alloy steel Die.4)Unit capacity: 1.5-2.0ton/hour wood pellets.5)Main shaft Roll and Shear pin Bearings Geared from Rear.6)feeding screw conveyor with shaft stirrer.7)Magnetic spout: Permanent Magnet.Auxiliary: base with 800mm height.Total weight: 5.1m.      ModelMain Power(kw)Capacity(t/h)Feeding Power(kw)Conditioner Power(kw)Die Diameter(mm)Pellet size(mm)LH-320370.2-0.31.52.23206,8,10,12LH-350550.5-0.71.53350LH-420900.8-1.22.25.5420LH-480901.0-1.32.25.5480LH-5081321.7-2.22.25.5508LH-5581602.0-2.52.25.5572LH-6781852.5-3.5311678LH-7682504.0-5.5418.57685.Steam and dust removing system1) Fan: 2.2kw2) Airlock: 0.75kw3) Cyclone diameter: 800mm4) Bag type dust catcher: TB9.5) Remove the fine dust and steam from pelletizing chamber to improve the working efficiency.6.Belt conveyor   1)Belt width: 600m. Length: 4000mm.2) Function: convey the pellets to bucket elevator for pellet cooler.7.Cooler & Screen(SKLN 14*14)1) Cooling machine: 0.75kw feeding airlock. 7.5kw cooling fan, 20 bag type of dust catcher.2) Vibrating screen: 2x0.37kw vibrating motor.3) Machine Size: 2.5*1.5*3.2 MM.4) Machine Weight: 1800KG.  8.Packing machine with silo(DB-50A)1). Pellet silo:1*1*1m2). 0.37kw electric motor;3) Automatic measurement, heating sealer and air compressor.4).Machine Size:2.45*0.7*0.65m;  Machine Weight: 550KG.5). 2.7 m belt Conveyor;6). Electrical cabinet;7). 5-25 kgs / bag9.Electric control cabinet (BK-1)1). Control complete pellet making line.2). Total rated power of all motors: 405.5 kw.3) Voltage: 3phases, 380v/50hz.4). Include: Central Control Cabinet.           Field control cabinet.5). Electric Installation Auxiliary Materials: supplied by buyer.  Our Service:1.Customized products and packaging;2.24-hours online inquiring support.3.One year warranty but without the spare parts.4.Video and technical guidance.5.Show our factory and support video inspection.6.Free raw material test service.7.Engineers available to service machinery overseas.    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
