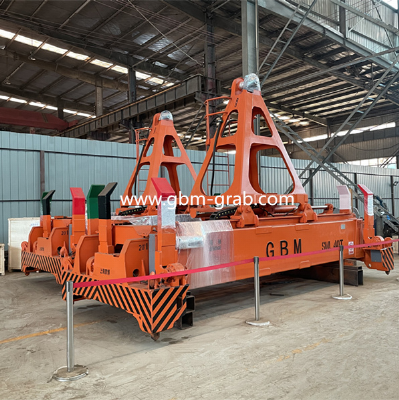

ISO20&40 Feet Automatic Container Spreader

GBM Electric Hydraulic Telescoping Container Spreader for loading 20ft and 40ft container Hydraulic telescopic spreader is specially designed for quayside container bridge crane and rail gantry cranes.It is suitable to both ISO 20FT and 40FT containers and its lifting capacity is 40T.Container spreader is driven by hydraulic system.Its automatic working provides high efficiency,especially for large container loading and unloading yard.It is suitable to both ISO 20Ft and 40Ft containers and its lifting capacity is 40T.  Container spreader is driven by hydraulic system. Its automatic working provides high efficiency, especially for large container loading and unloading yard.ParameterFor ISO standard 20/40ft containercontrol voltageAC 220V(optional)Rated lifting load41TTotal power≤8kwAllowable load eccentricity±10%Protection classIP55Load of lifting lugs at four coners10T*4Operating pressure of the system100 barDead weight 10TAmbient temperature20ºC-+45ºCExpansion time(20-40)~30sTwistlock modeISO floating twistlock, driven by oil cylinderTwistlock rotation(90°)~1sTelescpoic modedriven by a hydraulic motor and reduction gear box connected to en endless chainPower Voltage/FrequencyAC 380V(3P/50HZ)Flipper deviceKnock-down flippersApplicationQC, RMG,RTG,Portal crane, Jib crane     Our Services:Act as a good adviser and assistant of client, we can help them to get rich and generous returns on their investment.1.Pre-sale services:  a: Design customised project for clients.b: Design and manufcture products according to clients special requirement.c: Train technical personnel for clients.2.Services during the sale:a: Help clients to find reasonable freight forwarders ahead of delivery.b: Help clients to draw solving plans.3.After-sale services:a:Assist clients to prepare for the construction scheme.b:Install and debug equipment.c:Train the first-lin operators.d: Examine equipment.e: Take initiative to eliminate the troubles immediately.f:Provide techical exchanging. FAQ:Before you send us an inquiry about container spreader, please let us know some information as following: What is lifting capacity of spreader? What is type of spreader? Semi automatic container spreader, New I type spreader, motor spreader, hydraulic telescopic spreader or electro telescopic spreader? If what you need is telescopic spreader, please confirm it is hydraulic telescopic or electric telescopic? What is the using temperature of spreader? Will you match a rotator with the telescopic spreader? Thanks very much for your kindly cooperation!/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
