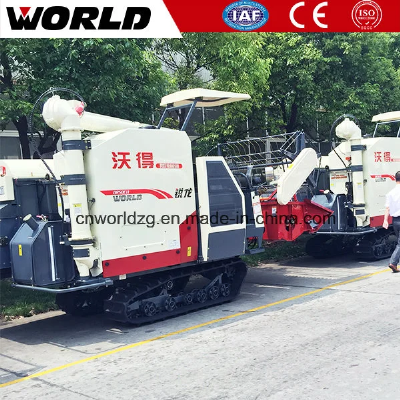

Small Reaper and Thresher Combined Harvesting Machine for Rice

small reaper and thresher combined harvesting machine for ricecrawler type combine harvester, 88hp diesel engine, gearbox with HST, 4kg feeding capacity, 2200mm cutting width, standard sun-roof, air conditioned cabin as optional rice and wheat combine harvester with hydraulic gearbox Main Features: 1.Equipped with turbocharged engine 88hp with stronger power and lower fuel consumption. 2.ZKB65 hydraulic gearbox with 40C HST ensures harvester working more smoothly. 3.Rubber track 450x90x51mm brings less ground clearance. 4.The length of threshing cylinder reaches 2050mm, which makes grain less loss. 5.Reverse mechanism is the best solution to solve block of conveyor. 6.Min. Ground clearance reaches 300mm, harvester can work  in deep mud fields. Details: small reaper and thresher combined harvesting machine for rice Specifications: small reaper and thresher combined harvesting machine for rice   Feeding Capacity  (kg/s)4Work Dimension L*W*H (mm)4900*2890*2700Weight (kg)2900Cabin/Sun shadeSun shadeEngine PartModel No.Changchai 4L88Power/Speed (hp/rpm)88/2700FuelLight Diesel OilFuel Capacity (L)130Fuel Consumption(kg/hm2)12~30StartMotor StarterGear BoxZKB65 made by WORLD Factory.HST40CC HST Imported from south Korea.Walking PartRubber TrackLength of Ground Contact (mm)1700Center Distance (mm)1160Size(mm)450*90*51Average Contact Pressure (kpa)≤20KpaMin. Ground Clearance (mm)300Gear ShiftsVariable Sun-transmission 3 ShiftsWalk Speed (Km/Hour)Low:0~1.85 Medium:0~6.5 High:0~9Theoretical Work Speed (Km/Hour)0.9-6.5Harvesting UnitGrain LifterDividerWorking Width (mm)2200Reel BatDia. × Length (mm)∮900×2028Gearshift MethodConstant SpeedAdjusting MeansHydraulicStubble Height[Lift] (mm)25cm or aboveThreshing &Cleaning UnitThreshing ModeAxial Flow Type, Bullet RotorThreshing RotorType of ThreshingBeat BarDia. ×Length (mm)∮620*2050Rotating Speed(rpm)662/732FanDiameter∮400Separating TypeVibrating Sieves +Air BlowArea of Sieves (Lowe and Upper Sieves) (m2)1.645Grain-unload UnitGrain Tank Capacity (M3)1.4Grain Discharging Type360 Degree Rotary Discharging PipeAlarm UnitsWater Temperature, Battery, Oil, Grain Tank, Jam of 2# AugerWork Efficiency(hm2/h)0.4~0.7CropsRice, WheatTotal LossLess than 2.5%BreakageLess than 1.5%ImpurityLess than 1.5%Related agriculture machines: /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
