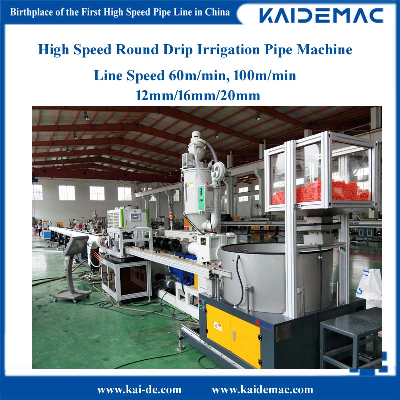

Round Drip Irrigation Pipe Making Machine 6mm/8mm/12mm/16mm/20mm

The Round Drip irrigation pipe machine, is independently developed by KAIDE company, with high highest speed and stable performance.Have been exported to many countries and areas: Egypt, Iran, Saudia Arabia, Morrocco, Cyprus, Mexico,Ukraine, Russia, Korea, etc... LINE SPEED OPTIONS Line ModelScrew DiameterL/DProduction ScopeProduction Speed Nominal PowerSJ-75Ф75mm36:1Ф12-20mm100m/min121KWSJ-60Ф60mm36:1Ф12-20mm60m/min85KWSJ-50Ф50mm30:1Ф12-20mm35m/min37KWDripper sorting & conveying systemThis drip irrigation pipe line adopted centrifugal screening device for drippers screening & sequence. With below advantages,: (1)High precision screening (2) Dripper identifying speed 400-800pcs/min which ensure the precise dripper supply during high speed production. Punching system(1)The round drip irrigation pipe line adopted mechanical punching mode, automatically tracking the pipe production speed, guaranteed the accuracy of punching position. (2)2 or 4 or 6 Holes punching (3) Punching speed: 400-800pcs/min Synchronous control PLC SystemThe synchronous control is realized from dripper feeding, screening & sequence, conveying & inlaid, haul-off, to punching and coiling, which ensures the precise control and stable running of high speed production.  Technical Specification PIPE DIAMETER12mm,16mm,20mmSuitable dripper modePC dripper or Non-PC dripperSuitable dripper length30-75mmPIPE THICKNESS0.5-1.2mmSuitable work pressure0.1-0.32MPaDripper Spacing>=100mmProduction speed>=60m/min, dripper spacing 300mmDripper identifying speed400-900 pc/ minPunching speed400-800 times/min     Punching hole Number2holesPunching rotating speed60,000 r/minHaul-off speed>=100 m/minCoiling speed>=120 m/minPackage100-600m per roll(φ16mm)(1) Drip irrigation pipe is widely used in greenhouse, greenhouse, field crops, especially for vegetables, fruits, flowers, nursery, landscaping and other economic crops. Drip irrigation pipe is very suitable for the greenhouse, field crop irrigation, garden and fruit tree greening irrigation in the area of water resources and labor shortage (2) Drip irrigation pipe can save water and fertilizer and improve economic benefits. At present, drip irrigation is the most commonly used water-saving irrigation method in arid and water shortage areas. Drip irrigation technology can make water utilization rate reach 95%. For More information, please feel free to contact us !   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
