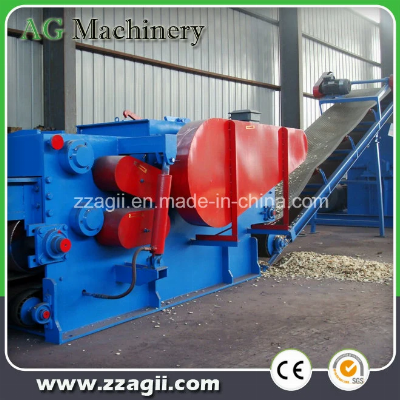

CE Approved China Supplier Drum Wood Chipper Shredder

Forest WoodWorking Machinery Drum Wood Chipper Shredder Machine  Product Description:The drum type wood chipper is the special equipment for producing the perfect chips. It is used in paper plants, particle board plants, fiber-broad plants, chip production and export bases. By which, the logs and small wood are cut into high quality with even length and uniform chip thickness. It is also suitable for chipping of branches, twigs and planks. Cutting the main raw material of small diameter wood ,timber harvesting ,processing residues (such as branches ,twigs, slab, the log core veneer , waste),can also be used for cutting non-wood raw materials (such as sugar cane , reed , bamboo etc). The chip length is different in accordance with the requirements of paper plants, particular broad and fiber-board industries. In order to meet this need, we have improved different kinds of drum chippers recently, and the new type machines have more advantages.   Technical Parameters:ModelBX-313BX-315BX-316BX-318Main Power (kw)304555110Capacity (T/H)2-33-58-1215-25Q'T'Y of flying blades (pcs)4444Opener size (mm)300x150400x170540x220680x270Input max diameter(mm)130150200250Length of chips (mm)10-2010-2010-2015-25Dimension of machine (m)2.5x1.7x1.32.6x1.8x1.43.1x2x1.53.5x2.18x1.8Weight of machine (kg)2200338046808320Feeding belt conveyor (m)4x0.34x0.46x0.556x0.7Discharging belt conveyor (m)10x0.410x0.510x0.610x0.8Structure and Operating principle:The drum wood chipper shredder machine is composed of a machine body, a knife roller, upper and lower feed roller, conveyor belts, hydraulic system components.   Knife roller mounted on two or three, the four sword, used specially manufactured flying bolt, via a pressure block, knife fixed on the knife roller, according to the cutting material of varying thickness, upper feed roll assembly can use hydraulic system in a certain range of floating up and down, cutting down the qualified materials through the sieve hole down, exhausted from the bottom, the sheet will be in the cutting machine. The hydraulic system is composed of oil pump for oil cylinder can be activated to ,cover, easy blade replacement, the repair can lift the upper feeding roller assembly, is convenient for adjusting knife, knife at the end of the gap and the comb assembly. Application of Drum wood chipping machine:Drum wood chipper machine is the production of wood and special equipment, this product is widely used in the particleboard plant, medium, high density fiberboard plant, plant straw, biomass power plant, wood chip plant and other industrial and manufactures in the production of the preferred stock preparation apparatus. Related Woodworking Machinery:Wood Crusher  Wood Shredder Wood Shaving Machine Wood Log Splitter Wood Debarking Machine Wood Pellet Machine Wood Briquette Machine /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
