Paint Air Freshener Body Insecticide Disinfection Spray Aerosol Can Filling Machine

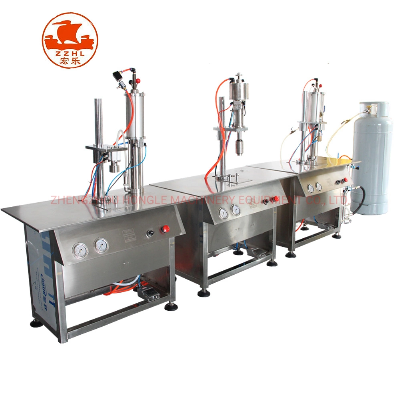

Product DescriptionFactory Direct Sale Aerosol Spray Paint / Air Freshener / Body Spray / Insecticide / Disinfection Spray Aerosol Can Filling Machine   Equipment instructionCJXH-1600B "3 in 3 "aerosol filling machineLiquid filling machine:CJXH-1600B semi-automatic filling machine has fully absorbed the advanced filling machine technology from the Swiss Pamasol Company.It pours liquid raw materials of aerosol products into tanks according to requirement, with ±1% refilling accuracy. The maximum filling capacity is 750ML, and filling speed is 600-1200 cans per hour. You can choose different products based on different models. The overall dimension of filling liquid machine is 1000*600*1350mm Maximum Filling Volume (ml):20-750mlRepeat Filling Accuracy:±1.0%Working Air Pressure (Mpa):0.45~0.7Maximum Air Consumption (L/min):60Production Capacity (can/h):800-1500Packing dimension:1100*600*1500  90kg  (L*W*H). Can sealing machineSealed diameter and sealed depth are easy to adjust, and sealing quality is reliable. With high sealing speed, reliable sealing quality, as well as simple operation, adjustment and maintenance requirement. The machine is specially used for internal inflating sealing of global and universal 1-inch aerosol valve. Adjustable Sealing Diameter (mm):26.5~28.5)±0.15Adjustable Sealing Depth (mm):(0~7)±0.15Applicable Aerosol CanHeight (mm):60~350            Diameter (mm):20~100Working Pressure (MPa):0.45~0.7Maximum Air Consumption (L/min):50Production Capability (can/h):1200~1500Packing dimension:1100*600*1500  110kg  (L*W*H). Gas filling machine gas filling machine has fully absorbed the advanced filling machine technology from the Swiss Pamasol Company.Semi-automatic LPG, DME gas fillings are applicable to various gases of aerosol products. The filling machine equipped with a two-way pressurized booster pump, which can pressurize LPG, DME up to 1.0-120 Mpa and fluidize the LPG, DME, so as to accelerate filling speed and accurate measuring. The maximum filling capacity is 500ML,The filling accuracy is ± 0.5% and filling speed is 600-1200 cans per hour. The filling machine applied to aerosol cans with various specifications and can fill any aerosol can with the height within 330mm, and the diameter of aerosol cans could be adjusted freely. Maximum Filling Volume (ml):20-500mlRepeat Filling Accuracy:±1.0%Applicable Can Model:Height 60~350mm  Diameter 20-100mmWorking Pressure (Mpa):0.45-0.8MpaMaximum Air Consumption (L/min):60Production Capability (can/h):800-1500Packing dimension::1100*600*1500  120kg  (L*W*H).                   450*380*850    35kg   (L*W*H).Product ParametersProduction capacity:5000-8000cans/shift(8 hours)Max liquid volume(ml):   20ml.50ml,100ml,300ml,500ml,1000ml(can be choose)Max Gas volume(ml):   20ml.50ml,100ml,200ml,400ml,500ml(can be choose)liquid filling accuracy≤±1%gas filling accuracy≤±1%Working Pressure:0.65-1.0Mpaair consumption:  1.0(m3/min)Applicable aerosol can diameter20-85mm Applicable aerosol can height70-330mmPacking dimension(4 wooden cases)1100*600*1600mm  100kg1100*600*1600mm  95kg1100*600*1600mm  110kg360*320*750mm    35kgDetailed PhotosCertificationsPackaging & Shipping  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
