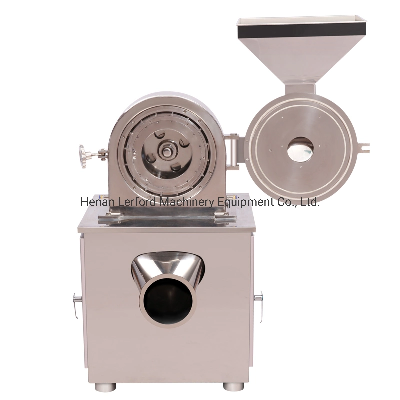

Stainless Steel Industrial Grinder Wet Grain Grinding Machine

1.Main Application:The grinder is suitable for grinding of Chinese herbal medicine compound and raw materials in such industries as food, fodder and chemistry.All powerful flour grinder machine is mainly used in chemical industry, medicine (traditional Chinese herb medicine), food, spices and spices, agriculture and food industry, especially suitable for milling dry brittle materials. 2.Working principle:The electrical motor of the grinderdrives the main shaft to rotate at a high speed and spin off the material into the grinder, The material is ground between the moving plate and the fixed plate by striking, shearing and grinding, The ground material is carried by the air flow through the screen to the collecting bag. The size of the particle can beadjusted by changing the screen with different screen holes.  3.Technical information:ModelWSBX-200WSBX-300WSBX-400WSBX-500WSBX-600Capacity(kg/h)   30-150     30-300     60-500     200-700300-1300 Speed of principal axis(r/min)   6000        3800         3400      34002500           Size of input granules(mm)   < 6   < 10 < 12 < 12 < 12 Fineness of products (mesh)   30-15030-15020-12020-12020-120Power(kw)         4       5.5   7.5   1115Weight(kg)250 320550630800 Overall size (L× W× H)    (mm)     640× 680 × 1100     660× 670 × 1200     750× 740 × 1430750*750*1510880× 930 × 1630 4.Advantages:The structure is simple, strong and stable, and the material is fast, uniform and effective.The whole machine is made of 304 stainless steel materials, and the inner parts of the shell are machined to achieve smooth surface, easy to clean.It makes food, medicine, chemical and other products more in line with national standards and meet the hygienic requirements of GMP.  1, What is your raw material?About the different material, we have the different machine for you.If wood material such as the wood logs, wood chips, big wood branch, we suggest you our wood crusher machine; if be the small wood branch, wood chips, grass, stalk, animal feed grain( soybean, maize, etc), bamboo, rice husk, biomass waste etc., our hammer mill is the most suitable one. 2, What capacity do you need?(kg/h)    According to your raw material and also the capacity, we can give you the exact and detailed quotation of the machine.     3, What's size of the final product do you need?(mm)    As our this machine is composed of the hammers and screen. The screen can be changed as per your final material size requirement, such as 1-10mm. So we need to know the final material size.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
