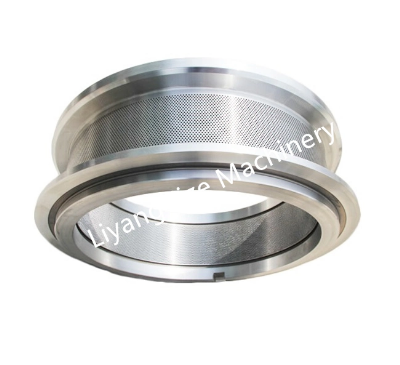

Company InformationOur company Liyang Zeji Machinery Co., Ltd. is a professional manufacturer focus on: hammer mill, mixer, feed/wood pellet machine, cooler, crumbler, screener, extruder, dryer, packing machine, liquid adding machine, conveyors and spare parts: wood chipper fly-knives, hammer mill blades/screen, ring die, roller and other pellet machines' spare parts.For machines, we have own laser cutter, CNC machining center, welding machines. For ring die, we have own auto gun-drilling machines (12 sets), auto counter-sinking machines, auto lathing machines, vacuum heat treatment machines.We insist on high quality and competitive price, looking for long term business and win-win.Product Description XGJ560 XGJ850 XGJ630 wood pellet machine ring die pellet die matrix moldRange of ring die spare parts' Application Applicable for Biomass pellet machine: wood pellet mill, sawdust pellet mill, grass pellet mill, straw pellet mill, crop stalk pellet machine, alfalfa pellet mill etc.Applicable for Fertilizer pellet machine, all kinds of animal/poultry/livestock feed pellet machine too. Process for making pellet mill ring diesBlank raw material Forging---Rough turning---Half finished turning---Drilling the hole---Grinding inner bore---Treaded hole--- Keyway milling---Heat treatment---Finish turning---Package Introduction of pellet machine ring die1. Material of the ring die: X46Cr13 /4Cr13(stainless steel), 20MnCr5/20CrMnTi (alloy steel) or customized2. Hardness of ring dies: HRC54-60.3. Diameter of ring die can do: 1.0mm up to 28mm4. Pellet die type can do: Ring Die or Flat Die5. Outer diameter can do: Outer diameter up to 1800mm6. Pellet Die model we can customize:For Awalia pellet mill: Awalia 420, Awalia350, etcFor Buhler pellet mill: Buhler350, Buhler400, Buhler420, Buhler520, Buhler660, etc.For CPM pellet mill: CPM2016, CPM3016, CPM3020, CPM3022, CPM7726, CPM7932, etc.For CPP pellet mill: CPP150, CPP200,CPP360,CPP300,CSP020, etc.For IDAH pellet mill: IDAH530, IDAH530F, IDAH635D, etc.For Muyang pellet mill: MUZL180, MUZL350, MUZL420, MUZL600, MUZL1200, MUZL610, MUZL1210, MUZL1610, MUZL2010; MUZL350X, MUZL420X, MUZL600X, MUZL1200X(Especially for shrimp feed pellet, diameter: 1.2-2.5mm)Muyang FAMSUN350,Muyang FAMSUN420, Muyang FAMSUN550, Muyang FAMSUN600, Muyang FAMSUN1210For Zhengchang feed pellet mill: SZLH250, SZLH300,SZLH320,SZLH350,SZLH400,SZLH420,SZLH508, SZLH678, SZLH768, etcFor HKJ feed pellet mill: HKJ250, HKJ320,HKJ350,HKJ400,HKJ420,HKJ508 etcFor SZLJ feed pellet mill: SZLJ250, SZLJ320,SZLJ350,SZLJ400,SZLJ420,SZLJ508 etcFor OGM pellet mill: OGM-0.8, OGM-1.5, OGM-6, etcFor VAN ARSEN pellet mill: Van Arson C600, Van Arsen750, Van ArsenC900, etcFor KAHL pellet mill (Flat die): KAHL38-780, KAHL37-850, KAHL45-1250, etcFor PTN pellet mill: PTN580, PTN580-C, etcFor Yemmak pellet mill: YEMMAK520, YEMMAK420, etcFor Zhengchang wood pellet mill: MZLH250 ,MZLH320, MZLH350, MZLH400, MZLH420, MZLH508, MZLH678, MZLH768, etcFor Yulong wood pellet mill: XGJ560, XGJ850, etc Pls let us know below information to customize for you: 1.What is your ring die model?We can customize the model as you need2.What is the metaril you need?Stainless steel or alloy steel can produce3.What hole size you need?We can make 1-20mm hole4.What is the delivery time?Usually 10-30 days. WARM TIPSHow to maintain and inspect the ring die:1. The rollers should be correctly adjusted, make sure the hole inlets are not damaged by contact with the rollers or as a result of tramp metal.2. Material should be evenly distributed across the whole working area3. Make sure that all holes work uniformly, opening the clogged holes if necessary.4. When changing dies, carefully inspect the condition of the die seating surfaces and fixing systems including collar, clamp or wear ring. Packaging & ShippingFAQ Why choose us:1.We have our own 10 sets gun-drilling machines and auto counter-sinking machines.(The max thickness of ring die we can process can be 140mm).2.We have our own vacuum heat treatment machines.3.We use No.1 brand(Jinkun) ring die raw material, quality is best.4.Both alloy steel and stainless steel ring die, all made by gun-drilling machines and auto counter-sinking machines, delivery time can be 15-30 days.5.New advanced hole(inside) designing, ensure the pellets can be made out smoothly and no clogging. Special holes layout (row) arrangement, ensure capacity can be enhanced 10% wihtout broken.6. 15 years and every year 5000 pcs ring die experience. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
