1-20t/H New Design Automatic Pellet Feed Counterflow Cooler

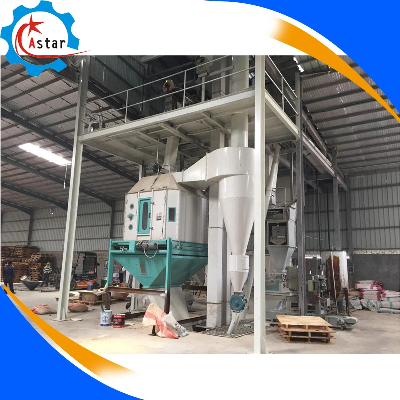

1-20T/H New Design Automatic Pellet Feed Counterflow Cooler 1. 1-20T/H New Design Automatic Pellet Feed Counterflow Cooler product character :This machine adopts the counter flow cooling principle to cool down pellets with high temperature and high moisture content. This cooling method can avoid the sudden cooling because of the direct contact between the cold air and materials . which will prevent the surface cracking of the pellets.The latest design of octagonal cooling chamber had no dead angle.Feeding via airlock had large wind area and remarkable cooling effect .The reciprocating slide valve discharging mechanism is stable and reliable in working and guarantee less residue.Low energy consumption and easy operation .The temperature of cooled products is not 3ºC-5ºC higher than room temperature, which is suitable for cooling granule materials .We also provide cooler with panel turnover discharging system for your choice. The hydraulic driven discharging mechanism is usually used for cooling the extruded or expanded materials .2. 1-20T/H New Design Automatic Pellet Feed Counterflow Cooler technical parameter :  ModelSKLN1.5SKLN2.5SKLN4SKLN5SKLN6SKLN8SKLN10Cooling volume (m3)1.52.5456810Capacity (t/h)351012152025Cooling time (min)No less 6~10After cooling temperature materialLess than 3~5ºC higher of the room temperatureCyclone Diameter(mm)60060010001000120016001600Power ( KW )0.751.11.51.51.52.22.2Airlock (KW)1.11.11.11.11.11.11.1           3. 1-20T/H New Design Automatic Pellet Feed Counterflow Cooler related Photos:Any more information you need 1-20T/H New Design Automatic Pellet Feed Counterflow Cooler, please feel free to contact with us.   Mrs. Winni Chongqing Qiaoxing Machinery & Equipment Company Website: qiaoxingmachinery.en.made-in-china.com Add: 4-6-88, No. 319 of Haier Road in Jiangbei District, Chongqing Municipality, Chongqing, China   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
