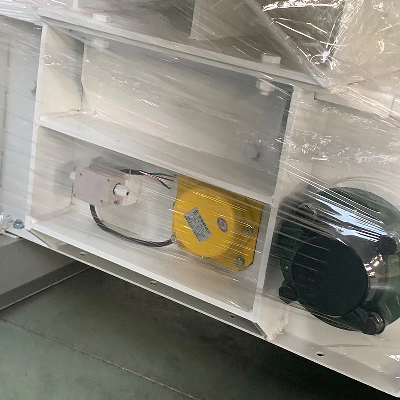

Pellet Level Drag Scraper Conveyor Chain Belt Conveyor

High Capacity Chain Conveyor For Grain, Flour ,Corn ,Maiz Etc Used In Feed Mill Flour Mill  The scraper conveyor is a conveying equipment that uses the scraper installed on the traction member (chain) to drag the material from the feed inlet along the fixed trough, moves forward and unloads the material at the exit. The scraper conveyor is mainly composed of scraper chain, machine trough, supporting wheel, driving wheel, tensioning wheel, feeding port, discharging port, transmission device and so on. When working, the chain and the scraper installed on the chain are driven by the driving wheel, and the material is pushed by the scraper in the direction of movement, which overcomes the friction resistance with the casing, so that the material can be conveyed as a continuous whole, to achieve The material entering the feed port is scraped along the machine groove to the discharge port for discharge. The scraper conveyor is suitable for conveying lumpy, granular and powdery materials with uniform size over a long distance. The scraper machine has three forms of horizontal, inclined and vertical conveying. The horizontal conveying scraper machine is divided into two types: flat type and U type. The flat scraper will leave some residue on the sides of the chute. The U-shaped scraper machine can basically have no residue, so it is also called self-cleaning scraper machine. Especially suitable for conveying premix and compound feed powder in feed processing plants Chain Conveyor  Photo                  CONVEYOR HEAD                                                  CONVEYOR TROUGH                                   CONVEYOR TAILChain Conveyor  ModelModelCapacitySpeed(m/s)Density(t/m3)Ouput(m3/h)TGSP160.5≤0.7535TGSP200.5≤0.7555TGSP200.5≤0.7580TGSP320.5≤0.75130TGSP400.5≤0.75280TGSP500.5≤0.75400Chain Conveyor Advantage     BOTTOM PLATES THICKNESS 6MMGood Machines from Good Tools            CNC MACHINE                                                            LASER CUTTER                                                  POWER COATING  Spare Parts                 CHAIN                                                         CHAIN WITH SCRAPER                               STEEL CHAIN PERFORMANCE ON SITE what types of project we can supply     we can supply full turnkey project as below :     @poultry and large animal feed production line      @ premix plant      @ fish and shrimp feed prodcution line      @ corn flaking line      @ wood biomass pellet line      @ fertilizer pelleting line FAQ1. Q: Are you a trading company or a manufacturer?A: We are a professional manufacturer will pellet machinery, which has almost 13 years of experience in this feedpellet machinery industry. Trust Me, Choose Gamma Tech is the best decision you ever made. We have professional R&D team, design team , production team ,sale team and after-sale team, we will provide themost professional service for you . 2. Q: How can I get to your company?A: You can get a flight to shanghai Airport. We are just about 2hours away from shanghai Airport. WelcomeTo Visit Gamma Tech factory and project case in China. 3. Q: How long is your warranty time?A: one year(Calculated from the equipment arrives the customer's side.). After this period we will definitely support you we have online trouble shooting and some makets we have local supervisor for support . also we can send engineer from china if we cannot solve by other way.4. Q: Will you send engineers to install the plant?A: yes, We can arrange the professional technical engineers to installed for you , but at an extra cost payable by the customer. On The time, our engineer will  train your team how to operate all the complete line. Or you can get local contractors to do the commissioning and we send one supervising engineer.5. Q: Do you have some foreign customers using your equipment?A: yes, we have.our company has established business relationships with customers in Poland, Clumnbia ,German,Slovakia,Ukraine,Vietnam,Algeria, Saudi Arabia, Qatar,Afghanistan, Indonesia, Thailand, and other  countries.6.Q:What capacity of your equipment ? Can You design the sheme for me ?A: Our equipment can meet 1-100t/h capacity requirement.  We can free design the different project sheme for you . Include the 1-production construction design drawings,  2-steel structure full drawing and steel material list; 3-plant and sectional layout graph of workshop drawings. 4.steel structure construction drawings, 5-the detailed steel structure drawings and materials list;6-diagram of floor, roof and wall reserved hole ;7-Oscillatory coefficients of equipment.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
