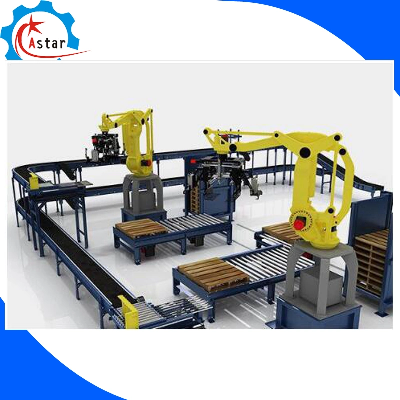

Industrial Use Full-Automatic Robot Palletizer

Industrial use full-automatic robot palletizer Description:  Industrial use full-automatic robot palletizer is widely use in many area, such as feed factory, wood pellet factory, cement factory , and any factory need palletizing .  it is simple structure with easy operation manual .  Save Labor, and low investment .Model: TY-500Capacity: 500bags/HVoltage:  380V    50HZ   Power 5KWMachine Dimension:  L2400mm×W2000mm×H3000mmThe layer number of pallet  1-12 layersAir supply pressure: 0.6-1.0MpaWeight : 2000KgIndustrial use full-automatic robot palletizer as below :NONameRemarksSpecificationQty1Main machineCustomized Carbon steel1 set2Lifting platformInclude hydraulic station 1set3X-axis linear motion deviceSynchronous belt, synchronous wheel 14Y-axis linear motion deviceCoupling, bearing housing, ball screw, etc 1 set5Guide systemIncluding X axis, Y axis guide, sliding block, etcSiemens 1 set6Mechanical gripperGrip (aluminum profile carbon steel galvanized assembly) 1 set7Grip rotating mechanismNewstar planetary reducerChina 1 set8Pallet library  1 set9Push down belt conveyorAutomatic tray feeding 1 set10Climbing conveyorRealize material direction change2000*6000001 set12Leveling deviceCustom lawn climbing belt1350*7001 set13Grab conveyorIncluding flattening and flattening devices1100*7001 set14Pneumatic ComponentsIncluding supporting device, conveying deviceTaiwan 1 set15Geared motorCylinder, solenoid valve, gas connectionChina 5 sets16Detection switchPart with brakeImport 1group17Servo drive systemPhotoelectric, travel, proximity switch, etc. 3 sets18Control cabinet  1 set Wrapping Machine : Specification:Diameter of turntable:     2200mmTurntable height:      500mmConveyor width :   1520mm rolling conveyorDimension:     3400*2200*2550 mmWeight :     1200kg                              Total Power:     2.3 KWVoltage:     AC380VAir pressure:          0.6-0.8MpaSpeed:      0~12 rpm/min  Except this low cost palletizer machine, we also have the robot palletizer machine with high capacity . Industrial use full-automatic robot palletizer:Palletizing process:1. Sealing machine2. Transfer to the automatic feeding device along the transmission line3. Send to the leveling mechanism via the transmission line for shaping before palletizing4. Transfer to the area to be palletized5. The robot sends the product code to the corresponding tray according to the program settings.6. After the palletizing is completed, the tray is transferred to the blanking position through the transmission line7. Forklift unloadingRemarks: The entire robot palletizing area is semi-closed with safety barriers, and personnel are not allowed to enter the robot's working range through any transmission line. The guardrail has a manual maintenance door.Conveying products → automatic correction → automatic flattening mechanism → automatic palletizing → forklift storageKawasaki performance parameters Radius of motion3195mmWork space 77.9 cubic meterLoad130 kg Motion axis number4Installation positionGround  Repeat accuracy±0.06mmControllerKRC4Self weight1093 kg The motion parameters of each axisRange of motionMoving speedAxis 1±185°105°/sAxis 2 -5°/-140°107°/sAxis 3+155°/ 0°114°/sAxis 4--174°/s We Also Have The Full Automatic Packing Machine Too , they can be consist by the full automatic line , Packing machine-Palletizer-Wrapping Machine : To know more Industrial use full-automatic robot palletizer , pls contact with us freely.Attn: Ms Winni /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
