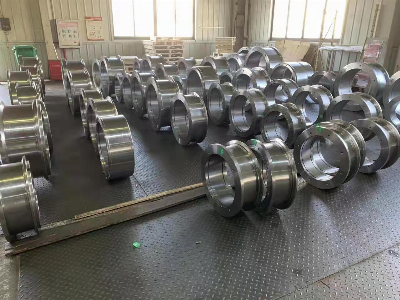

Steel Ring Die for Feed Pellet Mill and Wood Pellet Machine

Steel Ring Die for Feed Pellet Mill and Wood Pellet Machine1. General Introduction of Ring DieRing die is one of the most important part of feed pellet mill and wooden pellet production. Its quality determines directly the quality and output of pellet, and also affects the running state of the equipment which related to the production efficiency and energy consumption.2. Main Applications of Our ProductionOur products are widely applied to animal feed granular, which can produce Fish/Duck/Sheep/Pig/Shrimp/Broiler Pellets and so on. Our products are widely applied to biomass granulator, which can press woods, bean pulps, rice husks and so on.3. Specification ParameterPellet Die TypeRing DieMaterial Steel,Stainless Steel,Alloy SteelDiameter of Ring Die1mm-22mmOuter Diameter of Workpieceup to 1500mmInner Dianeter of Workpieceup to 900mmSome statistics you might want to know:VarietiesHole DiameterCompression RatioPoultry Feed2.0-4.51:9-1:20Shrimp Feed0.8-2.01:20-1:35Fish Feed1.5-5.01:10-1:25Crad Feed1.5-5.01:10-1:26Sheep Feed4.5-10.01:6-1:1:12Biomass/Fertilizer5.0-18.01:4-1:10Anyways, we can manufacture different kinds of ring dies according to your requirements or your drawings.ABOUT US:Founded in 2003, Ma'anshan Chenxu Machinery Manufacturing Co., Ltd. belongs to high-end equipment manufacturing industry,  our products are popular at home and abroad, exported to North America, Southeast Asia, the Middle East, the European Union, South Africa and other regions. The company has processed equipment such as 2500 ton press, 6 ton, 1 ton, 750 kg forging hammer, 4.2-meter-diameter CNC ring rolling machine and die forging machine to produce wear-resistant and corrosion-resistant stainless steel ring die, rolling knife, plate shear, stainless steel ring, flange, mechanical parts, etc./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
