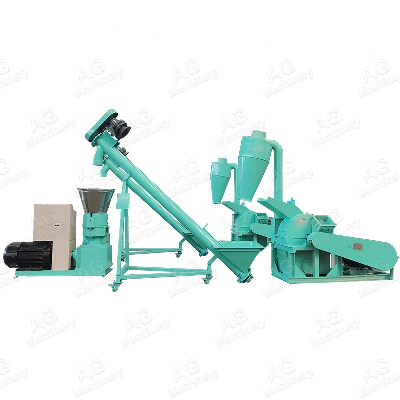

Automatic Small Straw Pellet Making Machine Biofuel Wood Granulator

High Efficiency Biomass Sawdust Pellet Making Machine Flat Die Wood Pellet PlantProduct DescriptionOur complete wood pellet production line has a compact structure, low energy consumption and is highly efficient. Every machine in the wood pellet plant can be designed and manufactured according to customers' requirements. Professional technical guidance of installing the machinery is also available.The whole process of wood pellet line can be highly automatically controlled. It mainly includes two processes.Processing LineNoProduct NameModelPowerDimension1Wood Crusher9FH-40011KW1.6*1.0*1.2m2Screw conveyorLS-2191.5KW2.8*0.7*0.85m3Wood Pellet MillKAF-25015KW1.27*0.53*1.07m4ControllerBK-1380V; 50Hz;Three Phases/DetailsProcessing Line:(1). Crushing Process - Wood CrusherThe best material diameter for supporting to produce pellet is 3-5mm. Thus if your material diameter exceed 5mm, then you need crushing machine to crush and grind them into small powder 1-5mm for supporting to produce pellets. It mills raw material like tree branch, wood shavings, wood chips, wood logs, cotton stalk, corn stalk, wheat straw etc, with size less than 50mm (diameter). After milled, the output size can reach diameter 3-5 mm, then it is pushed to next process to get dried and pelletized.   (2). Pelletizing Process - Wood Pellet MillPellet mill machine is the most important equipment of the wood pellet production line, has reliable running performance . It is special designed for compacting of wood, straw, and other biomass sources into pellets.Raw MaterialsWidely used in pelletizing wood, sawdust, crop straw (rice straw, wheat straw, corn stalks, sorghum stalk, soybean stalk, cotton stalk, grape straw, peanut seedlings, and sunflower stalk), rice husk, grass, shrubs, branches, wood cut-off head, bamboo debris, bagasse, etc..* Rice husk,straw,sunflower seed shell,peanut shell and other melon shell; * Branches,trunks,bark,bamboo,and other wood scrap;* All kinds of crop straw,rubber,cement,gray Slag and other chemical raw materials,etc.Finished Product Application of wood pellet making line:Our Machine to Make Wood Pellets with wide Applications and High Output Efficiency.The Applications Raw Materials as follows:  (1). All kinds of wood waste or agro-forestry waste can be used,such as:Wood waste,scobs,branch,palm tree,sugarcane residue,sawdust,medical slag,hay,discarded edible fungus bags.Bean stalk,wheat stalk,corn stalk,cotton stalks,sunflower stalks,mustard stalk,rice stalks,coffee husk,cotton shell,peanut shell,rice shell,coconut shell. (2).Livestock and poultry's waste,tea waste,tea waste,forestry wastes,forestry wastes,wood chips and many other organic waste resources. 1. Widely used in households, farming and industries.2. Mainly suitable for producing feed pellets, fuel pellets, fertilizer pellets,etc.3. Applied to different grains such as corn, wheat, sorghum, and any type of agro-forestry waste: crops straw, husks, vines, wood chips, etc. (Energy-saving & Environment-protecting)4. Size range of making wood pellets: Φ3, Φ4, Φ5, Φ6, Φ8, Φ10, Φ12mm. Spare PartsWood Crusher:Wood Pellet Mill:Other output:100-500kg/h wood pellet production line500kg/h wood pellet production line   1000kg/h wood pellet production lineAlibaba OrderPackaging & Shipping /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
