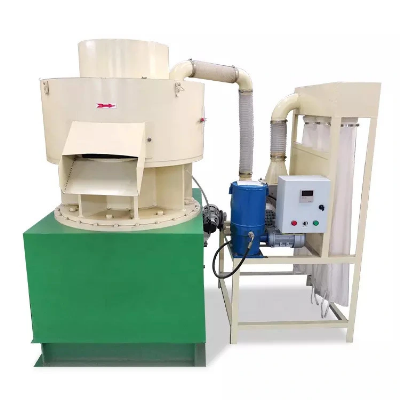

Ring Die Rice Husk Straw Sawdust Biomass Wood Pelletizer Machine

Hot Sale Biomass Pellet Machine for Wood Sawdust/Rice Husk/Cotton Stalk/GrassIntroduction:This type of vertical ring die 1000kg/h wood pellet mill machine is widely used in the biomass-energy fuels plant, power plant, wood processing plant, fertilizer plant, chemical plant etc. It is the ideal pressing shaping pelletizing equipment with low investment and high profit.   Specification:ModelInner Dia ofRing diePower(Kw)Capacity(ton/hour)Dimension(m)Weight(Kg)450 MX450mm55 kw0.8-1.0T1.4*0.75*1.552800550 MX550mm90 kw1.5-2T1.9*0.95*1.84500800 MX800mm132 kw2-3T2.5*1.35*2.170001000 MX1000mm160 kw3-4T2.65*1.45*2.18500Feature:1.Gearbox: Driving with high-precision gears, Automatic Lubricant pump system keep the gearbox working stability and warranty period;2.Vertical motor: the most characteristic is mounting hole with output shaft as the center, Equidistant distribution around, More powerful and stability of machine working;3.Blower system: Located in one side of work bin, Free control the working time, The main function is dedusting and discharge steam;4.Working parts: Ring-die and rollers materials are alloy steel, Heat treatment made by ourselves, Hardness more than 52,In this hardness can assure the pelleting quality and warranty time, Working manner is from inside to outside press, Centrifugal force and extrusion pressure together, Produced more capacity, At the same time assure hardness and density, The special design is 4 rollers working, Increase press rate then increase capacity, Ring-die is "vertical double-deck" structure, It can use one mould with same hole size for working life increased, Moreover it can use one mould with different hole size for saving the money for another size mould.Detailed Images:          Raw Materials:* Rice husk,straw,sunflower seed shell,peanut shell and other melon shell;* Branches,trunks,bark,bamboo,and other wood scrap;* All kinds of crop straw,rubber,cement,gray Slag and other chemical raw materials,etc.   Advantage: 1. Widely used in households, farming and industries.2. Mainly suitable for producing feed pellets, fuel pellets, fertilizer pellets,etc.3. Applied to different grains such as corn, wheat, sorghum, and any type of agro-forestry waste: crops straw, rice husks, wood chips, etc. (Energy-saving & Environment-protecting.4. Size range of wood pellets: Φ6, Φ8, Φ10, Φ12mm.Wood Pellet Production LineSpare parts:   Packing & Delivery:     /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
