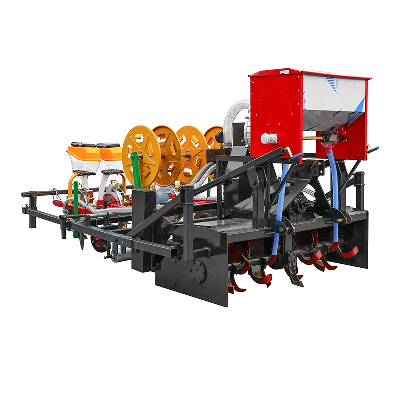

Air suction rotary tillage film mulching ridger The rotary tillage, ridging, fertilization, and film covering machine is a work tool driven by the tractor's power output shaft. It utilizes the composite motion of the rotating blade on the rotary tiller's blade shaft and the forward movement of the tool to perform rotary tillage, fertilization, ridging, and film covering operations on uncultivated and plowed fields. Its performance characteristic is strong soil crushing ability, and one rotary tillage can achieve the effect of several plows and rakes. It can not only rotate and ridge, but also complete the operations of fertilization and film covering. Scope of application: Suitable for rotary tillage, ridging, fertilization, and film covering operations on plowed and uncultivated land. It can work normally when the absolute soil moisture content is between 15% and 25%. Exceeding the applicable range may lead to a decrease in operational performance and a shortened service life of the machine.Main technical parameters of rotary tiller ridgeModel1GV-1201GV-240Tillage range(cm)120240Tillage depth(cm)≥12≥12Ridging height(cm)20-3520-35Ridge top width(cm)30~6530~65Ridge spacing(cm)100~125100~125Number of ridges (rows)1 2Number of rotary tillers (pcs)2852 Rotary blade formIT225IT225tractorSupporting power (kW)25.7~36.759-91.9Power output shaft speed (r/min)540720760Rotary blade speed (r/min)200265240Maximum turning radius of knife roller (mm) 225Connection formThree point suspensionImplement forward speed(km/h)2.0-5.52.0-5.5Overall weight (kg)Pure working hour productivity (hm2/h)0.17~0.30.48~1.2Overall weight (kg)410±30800±30External dimensions2480×1250×12802780×2430×1380Fertilization depth(cm)5~20()5~20()Fertilization amount(kg/Mu)25~8525~85Volume of material box(L)70140Number of laminations (piece)12Adaptive membrane width(cm)90-11090-110Gear oil filling amount(kg)3.56Application Scenario Applicable scenarios /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
