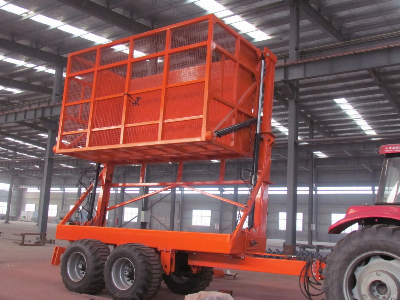

Tractor Sugarcane Trailer

SUGARCANE TRAILER 10T Sugarcane trailers are designed for the haulage of whole stick cane only. The trailers are manufactured with a lattice type side; this reduces the weight of the trailer. The up rights (or bolsters), head and tail boards are all collapsible, enabling the trailers to be delivered in a semi knock down form - reducing exportation transport costs. Once the tail board, spillar bar and chain rails are unbolted, the trailer is then able to transport timber. Main features:  Use Low pressure rip-proof transport tyre, fit for rough field transportation, box could up to 4.5m and 45 degrees heeled take crop into the trailer, Convenient transportation and quick loading and unloading, it could have some box, is an ideal transit trailer. MODEL7CG-10Rated Load Weight(T)10Carriage Length(mm)4250Lifting Height(mm)4700Carriage capacity(m³) 22.3Specific gravity (Kg/ m³)450Axle Tandem typeOuter track (mm)2400Track(mm)1800Inner track(mm)1200Tire qty.4Lifting hydraulic 2Tire type 600/50-22.5Rated weight of traction hook (KN)200Hydraulic system Min. 85 Lts/minBraking system Air compression  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
