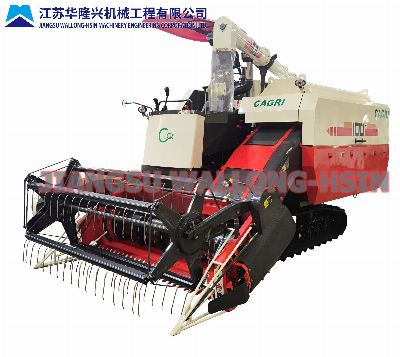

Paddy Wheat Combine Harvester Cag-100+ Farm Machinery

  Product DescriptionCAG-100+ is new generation of full-feed combine harvester with the characteristics of comfortable driving, low noise, high reliability, excellent operating performance, and strong paddy field passing ability. The threshing system is Spiked Tooth Axial Flow. The combine harvester is mainly used for the harvesting of rice and wheat. With optional accessories, it can also be used to harvest soybean and maize. The horse power of diesel engine: 88hp / 100hp / 110hp; cutting width: 2000mm / 2200mm; Hydrostatic Transmission(HST); The width of rubber track: 450mm / 500mm / 550mm; Top swing type discharging pipe; AC Cabin is optional.Detailed Photos Product ParametersModelCAG 100+TypeCrawler Self-propelled Full-feedEngineTypeWater-cooled, 4stroke, Direct Injection, Turbocharged Vertical DieselRated Power(kw/ps/rpm)75 / 102 / 2400Starting systemElectric StartDimensionsOverall Length(mm)5080Overall Width(mm)2600Overall Height(mm)2705Feed Capacity(kg/s)5Fuel Tank Capacity(L)210Fuel Consumption(kg/ha)≤30Min. Ground Clearance(mm)330Operation Weight(kg)3800Driving SystemCrawlersRubber Track500 x 90 x 53Track Gauge1150mmTransmissionHST Capacity45ccWorking Speed(km/h)Lower: 0-4.45Medium:0-6.07High: 0-7.6CuttingPickup Reel Diameter(mm)900Height AdjustmentHydraulicCutting Width(mm) 2200ThreshingCylinderQuantity1Diameter x Length(mm) Φ640x2041Grain Tank(m³)1.4m³Grain UnloadingHigh Positioned, Swing Type Discharge AugerOperation Effeciency Estimated Value (ha/ hour)0.4-0.8Stalk ChopperOptional   Packaging & Shipping/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
