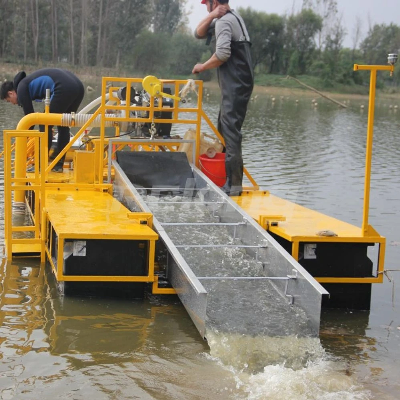

Heavy 6 Inch Gold&Diamond Mining DredgeThe new 6 inch heavy duty dredge is equipment for economy and portability. It can be quickly and easily broken down into small components where two men can transport the dredge manually.It has large walkways on the decks that can accommodate several divers and provide ease of access around all working parts of the dredge. The larger 23 hp engines offer greater suction depths up to 18 meter. The sluice box sets at the surface of the water to reduce the water lift and increase suction power, which are equipped with a winch leveling system for precise tilt and sluice box adjustment. The sluice box is equip rubber mat inside which designed to recover fine gold and gemstones. All dredges are equipped with a compressor for an ample air supply for two divers. The suction system is equipped with an oversized power jet and twin eductor systems to reduce the occurrence of rock jams. Mounted on modular crosslink flotation modules measuring 8 pieces high impact plastic polymer pontoons, After assembly flotation dimension is approximately 2.5m wide and up to 4.65m in length.Sluice box dimension is 0.56m wide and up to 3.6m in length. All frames have been reinforced for a more stable working platform.RL-6246V SpecificationNOTitleSpecificationRemark1Pump/PowerRL 350/VANGUARD 23hpGasoline2Air CompressorCAST K263 3Sluice Size(cm)360*65 4Max Dredging Depth18m 5Capacity(m³)14m³/h 6Fuel Consumption (L)4L/HGasoline7Suction Hose/Length6'' * 20m 8Pontoon (cm)510*197*55 9Net weight800kg 10Packing Size1*20' Container Note:The machine with air compressor contains: Air bag x 1 pc, T80 x 1 pc, diving air pipe x10m, Diving respirator x 1 pc. Diving mask, diving suit, lead, protective gloves, diving boots and other personal equipment can be purchased according to somatotype and water temperature.★ 1 Hour to Qingdao Port ★ 2 Production Bases ★ 10 + Years Experience Professional Manufacturer★ 20+ International Approvals ★ 30+ People Professional R&D Dept. ★ 35+ Family's Factories★ 60+ Exporting Countries ★ 100+ Cooperative Factories ★ 200+ Workers and Sales Team★ 300+ Professional Projects ★ 500+ Active Customers ★ Direct Factory Price/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
