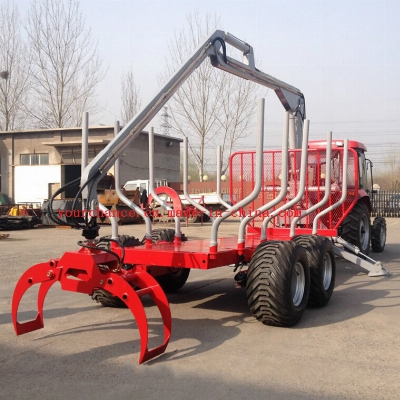

China Tip Quality Zm12006 12tons ATV Forest Log Trailer with Crane

China Tip quality ZM12006 12tons ATV Forest log trailer with CraneMain Performance and Features:1).It is used in loading,unloading,transporting,stacking and unstacking of wood, grass and reed, bamboo,etc.2).Hydraulic transmission is used,Featured with compact structure, flexibility, convenient operation and quick mounting and dismounting. It uses hydraulic oil commonly with tractor. The hydraulic elements are standardized, convenient for operation and service.3). High quality product have ISO, CE Certificates, which approved by SGS,BV, ECU,VCA.Main Specification and Technical Parameters: Log loading trailer ModelZM1002ZM3004ZM5004ZM8006ZM10006ZM12006Matching Tractor or ATV(HP)10-25 hp20-50 hp30-60 hp50-80 hp70-100 hp80-140 hpNet Weight (kg)        1010kg1790kg2040kg2750kg3000kg3200kg       Trailer ModelTR10TR30TR50TR80TR100TR120Trailer Net weight (kg)420690940145017001900Load Capacity (ton)        13581012Load Area (m²)        0.851.01.62.22.52.8Total Length of trailer (m)3.65.15.15.96.36.3Trailer Loading Length (m)2.03.13.13.84.34.3Total Width of trailer (m)1.41.61.82.22.32.5Assistant hydraulic steeringNoStandardStandardStandardStandardStandardFrame tube dimensions (mm)80x80x6140x140x6140x140x6160x160x6160x160x6160x160x6Traction hole Diameter (mm)333838383838Tire size6.00-137.00-168.25-16400/60-15.5400/60-15.5400/60-15.5       Crane ModelCR02CR04CR04CR06CR06CR06Crane net weight (kg)59011001100130013001300Max. Arm Reach (m)3.54.34.36.06.06.0Lift capacity/Arm reach (kg/m)(Without grapple& Rotator)400/2;300/3;200/3.51280/2;760/3;500/4;450/4.31280/2;760/3;500/4;450/4.31280/2,760/3,500/4,340/5,240/61280/2,760/3,500/4,340/5,240/61280/2,760/3,500/4,340/5,240/6Operating ValveMulti-LeverMulti-LeverMulti-LeverMulti-LeverMulti-LeverMulti-LeverRotatorCLB10CLB30CLB30CLB30CLB30CLB30Recommend pump capacity50 l/min50 l/min50 l/min50 l/min50 l/min50 l/minRotating Angle370°400°400°400°400°400°       Grab ModelGT019GT024GT024GT029GT029GT029Grab net weight (kg)90130130160160160Max. Grab opening width (mm)114013001300143014301430Grabbing logs diameter (mm)80-42070-48570-48575-53075-53075-530Grabbing area (m²)0.200.280.280.28 m20.28 m20.28 m2  Optional configurations:2 or 4 hubs Hydraulic brakes,PTO /Gasoline /Diesel engine Hydraulic Center, winch  Packing size (L x W x H) (mm)3750×1200×9004400×1500×10004500×1500×10505150×1850×10505900×1850×10505900×1950×1050Log loading trailer with Crane Specificaitons:Log loading trailer with Crane details show:High quality Log loading trailer with Crane have ISO,CE, PVOC COC, CO etc certificates:Log loading trailer with Crane by Iron crate or Plywood case packing:Best price will be quoted for you as soon as receive your Requirement !/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
