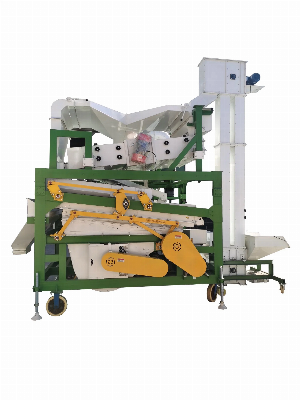

5cc-15 Beans Seed Cleaning Machine

12-14t/h  Soybean Cleaning Machine 5CC-15 Combined CleanerWorking Principle•The raw grain go to machine by elevator,first go through the vibration grader with two layers for removing the large and small impurities,at the same time the grain evenly scattered on the sieves,front and back air screen part and the outside cyclone system will suck the dust and light impurities out ;•Then the grain will go to the gravity table which is for removing the small sticks,lighted and moldy grain,half beans etc.;•All the impurities which removed by gravity table can separate to three different by the two sieves layers in the outlet.Machine StructureThe Impurities the machine can removeMachine Specification  Model 5CC-15 Combined Cleaner Sieve Size 2000mmx1500mm Power(kw) Fan motor: 11KWVibration motors: 0.55X2KWGravity table Fan Motor:11KWGravity table vibration motor:2.2KWElevator:2.2KWTotal in:27.5KW Capacity(t/h) 12-14t/h based on soybean Weight(kg) 4500 Overall Size L×W×H(mm) 4600*2500*4500mm Voltage 380V, 50HZ, three phases   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
