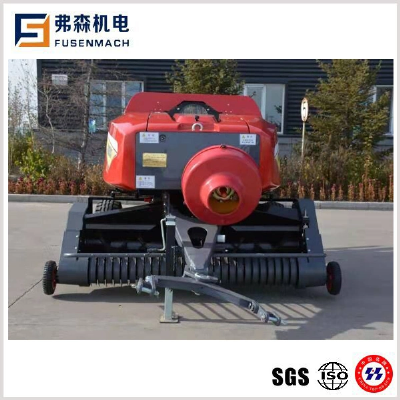

9YFQ-1.9 trans-row picker-square-baler New achievement of national significant scientific project in the eleventh five-year plan periodProducts for which national agricultural machinery purchase subsidy is providedSales rank first for five successive years Main technical indicators The product model 9YFQ-1.9 trans-row picker-square-baler 9YFQ-2.2rans-row picker-square-baler Picking width (9YFQ-1.9 trans-row picker-square-baler) 1928 mm Picking width (9YFQ-2.2 trans-row picker-square-baler) 2240MM Successful baling ratio ≥99% Bale cross sectional dimensions 360×460mm Bale length 300~1300mm Bale density 110~180kg/m3 Contour wheel 2( one on each side) Piston reciprocating frequency 100 times/minute Stroke 550mm Number of knotters and capacity of rope box 2 pieces,6 bales Speed of matched power take-off shaft of tractor 540r/min Matched Power >35kW. 9YFQ series trans-row picker-square-balers (square balers or balers for short) can harvest not only pastures but also the straws of various crops.With more and more straws of crops are used as feedstuffs and in biofuel production, these balers find wider applications because they are easy to operate and transport,and substantially cut costs. 9YFQ series trans-row picker-square-balers manufactured by Hohhot Branch of Chinese Academy of Agricultural Mechanization Sciences is new-type high-efficiency trans-row picking and baling machine (frontal traction) As compared to a conventional baler (side traction), the machine has the following features: ★ The machine adopts the knotter imported from Germany, ensuring stable performance and high successful baling ratio; ★ Longitudinally symmetrical arrangement of the implements ensures high traveling stability, traction ease, and adaptability to operation in small or irregular fields; ★ Low horizontal spring-tooth-drum-type picker enables reduction to lifting height and pasture loss.The picker is equipped with two contour wheels thus the machine can operate in low-lying field segments. ★ The compacting and baling chamber and the baling needle are sufficiently above the field hence the baling needle may not contact even the low-lying field segments. Conventional protective frame is therefore cancelled for baling needle; ★ From being picked to being baled the pasture moves longitudinally in the machine. The processes of delivering, compacting and baling are reasonable and good for increasing piston reciprocating frequency thus productivity. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
