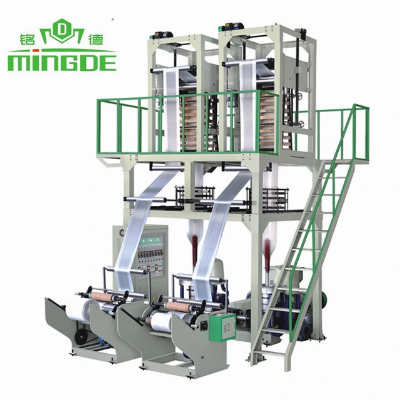

Single Screw Double-Head Automatic Plastic HDPE Blown Extruder Film Blowing Machine

Single Screw Double-Head Automatic Plastic HDPE Blown Extruder Film Blowing Machine)It is suitable for (HDPE), (LDPE) (LLDPE), which is widely used for packing foodstuff, garment, textile, daily-use articles and industrial products, etc. 1, The machine adopts single screw to extrude the material, two die heads to blow the film. 2, The screw stem and cylinder are made of 38CRMOALA high quality alloy steel after fine finishing and nitride treatment, which has high hardness, strong resistance to corrosion, durable service. 3, The die head is plated with hard chrome, of screw mandrel type structure with even and smooth discharging, the blown plastic film has fine finishing; The blower is of labyrinth structure with even air output. The coiling unit adopts pressure friction rewinding or center rewinding, which is driven by torque motor, with even and smooth rewinding and easy roll changing. 4. Optional equipment Double winder Rotary die head Auto loader Double lip air ring Air shaft Corona treatment Fast screen changer Air compressor All roller pneumatic type ModelMD-H2-55MD-H2-65SuitableMaterialHDPE/LDPE/LLDPEHDPE/LDPE/LLDPEMax Film Width(mm)500*2600*2Film Thickness(mm)HD:0.008-0.08HD:0.008-0.08Max Extrusion Output HD50kg/hr70kg/hrExtrusion UnitGear Box173200Screw Diameter(mm)φ55φ65Screw's Material38 CRMOALA38 CRMOALABarrel's Material38 CRMOALA38 CRMOALABarrel's Cooling Fan250W*2370W*2Thermo Control (zone)34Driving Motor (kw)2230Extrusion DieDie Size (mm)HD:φ50/60*2HD:φ50/60*2Screen changerStandard manualStandard manualThermo Control(zone)2*22*2Air Ringφ620*2φ620*2Cooling Blower(kw)1.52.2Center steady stick2 PCS2 PCSTake-up UnitRoller Width(mm)φ138*550φ138*650Embossing roller width450mm550mmTake-UP Motor (kw)0.75*21.1*2Take-UP Speed(M/min)10-6010-60Height adjustable type700mm700mmWinding UnitType of WinderSurface friction single winderSurface friction single winderRoller Width (mm)600700Winding Motor(KW)66Winding Speed(M/min)10-6010-60Voltage380V/50HZ/3PHASE380V/50HZ/3PHASECover Dimensins5*3.2*4.3m5.5*3.4*4.3m  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
