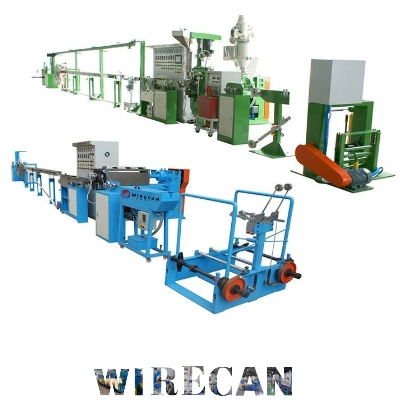

High Quality Electric Wire Cable Making Machine

High-quality wire and cable-making machines, including cable extrusion machines, play a crucial role in the manufacturing of reliable and durable electrical wires and cables. These machines are used to produce a wide range of cables, including power cables, communication cables, data cables, and more. Here are some key features and considerations for high-quality wire and cable-making machines, including cable extrusion machines.  1,High Quality Electric Wire Cable Making Machine  application:Suitable for the extrusion of PVC,PE,PU and other plastic material,mainly applied in the insulation or sheath extrusion of car cable,net wire,power cable,data wire,high frequency wire,building wire,electric wire.etc.The changed screw is suitable for extrusion of low smoke halogen free,nylon and other plastic material.                2,High Quality Electric Wire Cable Making Machine  Technical parameters:  Technical parametersMachine typeGF-25GF-30GF-35GF-45GF-50GF-60Pay off typemotorizedmotorized/double-shaftScrew diameterΦ25Φ30Φ35Φ45Φ50Φ60Screw L/D26:1Max.extrusion output20kg/h30kg/h40kg/h50kg/h70kg/h110kg/hMotor power7.5HP10HP10HP15HP15HP20HPWire diameterΦ0.2-1.0Φ0.2-2.0Φ0.4-2.5Φ0.6-3.0Φ0.6-4.0Φ0.8-8.0Cooling deviceFolding type W/U typeHaul-off power2HP2HP2HP3HP3HP4HPWire-storage length250mMax. Line speed500m/minTake-up typeDouble shaft bundle packaging/shaft packaging 3. High Quality Electric Wire Cable Making Machine Equipment configurationNo.All parts' nameQty1Pay off rack1set2Copper wire pre-heater1set3Straightener platform1set4Main motor(free-adjustable)1set5Automatic dryer and hopper1set6Electric apparatus main control cabinet1set7Movable water trough1set8Laser diameter gauge1set9High speed printing machine1set10Fixed water-trough1set11Double-wheel capstan1set12Horizontal wire-accumulator1set13High frequency sparker1set14Double-shaft take-up machine1set  Can be optional for PLC control,infuse color machine  (for the production of double-color wire),  etc.  the concrete configuration can be adjustable according to client's requirement.      /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
