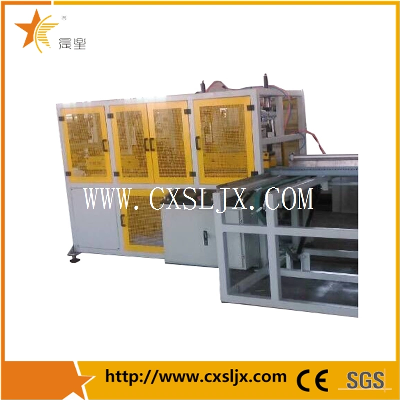

Online PVC Wire/Cable Trunking Punching Machine

Online PVC wire/Cable Trunking Punching MachineDescription:1. Cable Trunking Online Punching Machine : most applicated in PVC cable channel profiles, by hydraulic method. PLC control, automatic working.Three sides punching, punching speed is adjustable. 2. PVC trunking Punching machine is a new machine developed by Chengxing Plastic Machinery .Compared to the past mould , we change the mould structure from vertical single side into both sides punching way , the working efficiency will increase 3-6 times ; it equip with the automatic feeding equipment. The whole machine line can make the automatic continuous punching with the Chinese and English computer control . It can change the different size punching mould to make more productions with convenient , high speed ,high efficiency according to the customer's requirement .   Features:1.One time can punch 6pcs corners together 2.With gearbox & inverter to control speed with extruder by synchronously  3.Very lower noise and punch stable to equip with roll-type haul off machine   Technical specification:  Slide stroke70mmMotor power1.5kwSpeed of punching3-4m/minWay of punchingBilateral + bottom piercingAdjustment of the slide block's height45mmOutline dimension (L*W*H)3200*1500*2000/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
