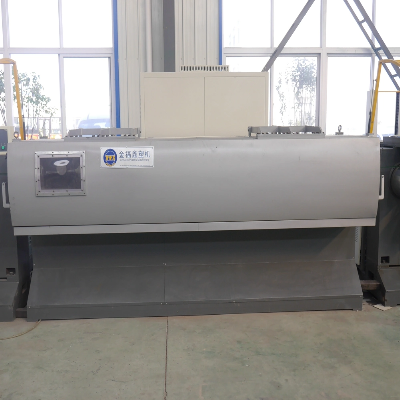

Plastic Pet Broom/Brush Monofilament Extrusion Machine

PET Broom Filament Extruder Machine is actually PET filament extruding machine  Components It consists of dehumidifying and crystallizing system, extruder, screen changer, Meter pump, mold, haul-off, oven, and winder, etc. IntroductionPower supply380V,3 phase,50HZRaw materialPET granules or 100% PET bottle fakes materialDiameter of final product0.05-2.5mmCapacity40-250kg/hourManpower2 persons/shiftMachine Dimension35*2*2.5mBRANDSMotorQingdao Red Flag (Founded in 1976)GearboxJiangsu Jiangyin (specialize in gearbox)Contactor:SiemensTemperature controllerOmronInverterABB    Different ModelsModelMax OutputSJ-75/3370kg/hSJ-90/33120kg/hSJ-120/33250kg/h  Production ProcessMaterial→ Dehumidifying and Crystallizing → Extruding → Filter→ Metering→ Mold → Cooling→ Haul-off →Oven Heating→ Haul-off→ Oven heating→ Haul-off → Glazing → Shaping → Haul-off→ Winding Application With 100% bottle flakes recycled material, to produce PET monofilament, like broom filament, zipper filament, Christmas tree filament, fishing net wire, construction fence wire, etc.Features 1. With 100% bottle flakes material, or mixed with PET raw material 2. New technology, hot wind cycles to dry, increase the viscosity of the bottle flakes material; secondary stretching, increase the tensile strength and elasticity.3. Precise and energy saving temperature control system, power saving, low noise, low input and high yield 4. Single screw extruder, compared with low degradation of twin-screw extruder 5. Easy operation, convenient maintenance, the labor and the electricity cost is low/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
