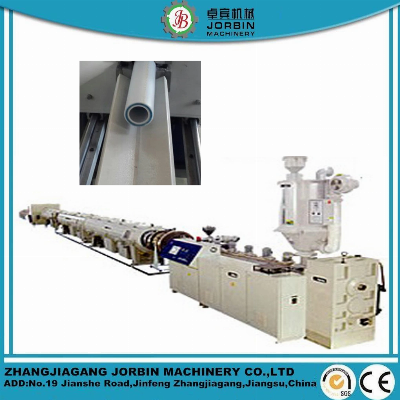

3 Layers PPR Glass Fiber Reinforced Tube Pipe Production Line

3 layers PPR Glass fiber reinforced tube pipe production line ,is mainly used to produce PPR Glass fiber reinforced pipes with various diameters pipe etc.We can produce one layer, two layers, three layers and even more layersThe advantages of this machine1.high speed 18m/min 2.competitive price 3.full automatic4.dust free cut5.  Dia. range:20-160mm 6. Linear velocity(Max):4-10m/min 7. CE certificationUpto your different capacity requirement, we can design different size of extruder, Small diameter can be 2 or 4 pipe comes at one timeMachine every partsItemNameQuantity1Vacuum Loading+ Dryer RFG-501set2SJ65/33 Single Screw Extruder1set3SJ50/30 Single Screw Extruder1set4SJ25/25 Single Screw Extruder 1 set5Mould(Φ20-Φ63mm)1 set6Vacuum Tank1set7Water Cooling Tank 1 set8Haul Off1 set9Chipless cutter1 set10Auto Loader1 set11Control System1 setMachine detail parameterItem NO.Item nameQuantity Power 1Auto charger and feeder1 set1.5kW2SJ65/33 conical twin-screw extruder1set45kW3High speed die(φ20-63)1set14kW4Vacuum forming tank1 set5.5kW5Haul-off machine 1 set3kW6Cutter machine1set2.2kW7Stack1 set--More machine photoes when we test the machine,The machine line,this is three layers pipe production machine with color line on the pipeThe die of the machine.Three layers PPR mould with color lines(2 lines- distance 5mm)suitable for size from Φ20mm-Φ110mm made from steel Cr40 with hardness All size and mould Cr painting very shiningVacuum forming machine(by this equipment, the pipe can be the correct type as you need, there is one vacuum pipe and two water pump in this machine)Container material: stainless steel 3mmEffective length: 6mVacuum pump: 5.5KW×1Water pump: 3KW×2 Cooling way: by waterMobile electromotor: 0.75KW×1Pipe dia. Arrangement: φ63-φ155mmHall off and Cutting machine(it can be set time to cut the pipe, so that the pipe can be the correct lenght as you need)Haul off machine power:3kWEffective working length:1200mmSpeed control: by inverterPipe dia. Arrangement: φ63-φ155mmPress tight test: by pneumaticCutting Motor Power:2.2kWBlower power: 1.5kWPipe dia. Arrangement: φ20-φ63mmMachine lineMain parameter of  PPR Pipe extrusion lineModelItemRMSG-65/30RMSG-90/30RMSG-120/30RMSG-150/30RMSG-120/33RMSG-150/33Pipe Size/mm16-6375-160160-315200-450315-630400-800Screw Diameter/mm6590120150150150L/D33:133:133:133:133:1 Capacity/kg/h80-160180-220250-400500-600700-900800-1000Hauling Speed/m/min0-160-100-60-30-20-1.5Cutting MeansSaw blade or non-scrap cuttingPlanetary cuttingPlanetary cuttingPlanetary cuttingPlanetary cuttingPerformance &Advantages of PPR Pipe extrusion line:1. GF series plastic pipe production line is mainly used in manufacture of the plastic pe/pp pipes with tube diameters and wall thickness, which are used for water supply and drainage in the field of agriculture and construction. 2. This line is composed of conical twin-screw extruder, vacuum calibration table, haul-off, cutter, stacker etc. 3. The extruder and the haul-off adopt the quality AC frequency conversion control device. 4. The vacuum pump and motor adopt the famous brand.5. The haul-off have two-claw, three-claw, four-claw, six-claw. 6. It may choose the saw blade cutting type or the planet cutting production efficiency. 7. Our company may equipped the special device for the manufacture of the inner wall spiral coil and core layer blister according to the client's requirement.If want more details of our PPR Pipe extrusion production linePlease do not hesitate to let me know.1. We supply below necessary documents with the machine:Machine layoutElectricity diagramMachine certificateGeneral manual book/maintenance book2. We provides one-year quality guarantee. During this period, if the machine's malfunction is approved to be our responsibility, we will send the broken spare parts to you with DHL courier or other way within 7 workdays after receiving the complainant. And send the technicians to the buyer's factory for maintaining. All charges are in our account.3. After one year guarantee, If you need we can provides payable spare parts and technician's VISITING maintenance, and any broken spares we can send you soon as possible.4. We trust that our quotation meets with your requirements and we will gladly furnish you with further information.5. 24Hours service :  Cell+86-13915707468/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
