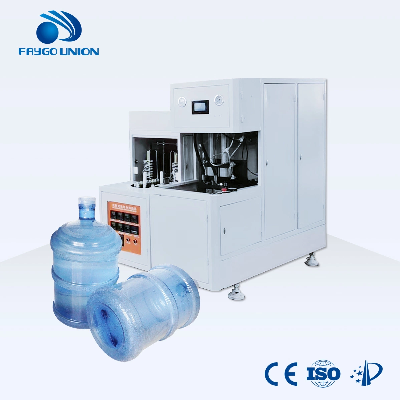

Pet Bottle Jar Semi Auro Blow Molding Machine with Factory Price

Product DescriptionPET bottle jar semi auto blow molding machine with factory priceFaygo Union CM series Semi-automatic blow molding machines especially used to produce from 2L to 20L bottles and are widely used to produce any shape of plastic from PET with neck diameters from 15mm to 200mm.   Product ParametersMain technical paremeters Container Model / FG-2L FG-5L FG-10L FG-20L Producr material / PET PET PET PET Volume L 0.1-2 2-5 5-10 10-20 Theoretical output pcs/h 800-1000 300-600 250-400 60-180 Height mm ≤300 ≤350 ≤390 ≤500 Preform inner diameter mm ≥12 ≥16 ≥16 ≥16 Mould Max mould plate diameter mm 350*380 400*460 470*500 420*500 Max mould thickness mm 210 260 370 400 Mould open stroke mm 160 220 350 318 Machine size and weight Main machine mm 1600*600*1610 1750*670*1860 1930*720*1830 2180*680*1650 Main machine weight kg 500 600 800 1000 Heater mm 1870*630*1450 1870*630*1450 1870*630*1450 2370*680*1650 Heater weight kg 250 250 250 380 Rated power kw 17.5 17.5 17.5 40   Our Advantages1.Perfect function with economic investment.. Perfect function with economic investment.2.Small size and compact construction withno space waste.3.Easy to operate and maintaln, operation by one person:4.Saving power and uneasy to worn out5.Adopting new double crank io lock mould, the cross fixed Providing high pressure bliowing system6.We can provide preforms and variousboth &cap molds from3 gallon to 5 gallon botles to met Customer's requirementsCompany ProfileJiangsu Faygo Union Machinery is a professional manufacturer of plastic machines.It occupied an area of 18000 square meters. With years of development,its products covers plastic extrusion lines, plastic blowing machine, plastic recycling machine, air compressor etc. Stick to the company idea is making good machine, being good person,Faygo Plast alwasy provide customers with high quality machines.Warmly welcome to visit our factory (next to Shanghai)!      /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
