Hot Sell PVC Pelletizing Machine Line PVC PE Film Compounding Granulating Machine

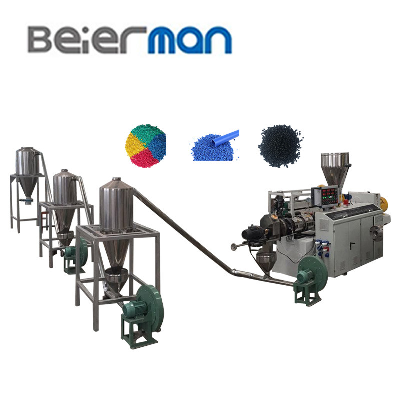

PVC hot die face cutter pelletizing line,specially designed for PVC,it is featured as advaced equipment, precise pelletizing and high producing capacity.Conical twin screw extruder,very suitable to process PVC powder .Pelletizing style:hot-cutting on mould face,even cutting ensures good shape.Different capacity will be equipped with corresponding different machines.can be equipped with SJSZ51/105;SJSZ55/120;SJSZ65/132;SJSZ80/156;SJSZ92/188 as main extruder to make granules.Here I take one of our China origin Zhangjiagang PVC hot die face pelletizing line with capacity 400kg/h for example.Major parts of 250-400kg/h PVC hot die face granulating line : ItemMajor parts nameDetail information1DTC-1000 Screw conveyor2.2KW2SRL-Z500/1000 mixer unityou can choose double speed motor, or invter motor,one is enough.heat:55/75KW(double speed motor),or 75KW (inverter motor)effective volume 375L;cool:15KW,effective volume 750L; Dimension:5.6*3*3.1(m);machine weight:4200kg;3DTC-600 Screw conveyor1.5KW4SJSZ80/156 conical twin screw extruderdriving motor 55KW,heating:36KW;cooling:1.25KW;feeding:1.1KW;vacuum exhaust:2.2KW;capacity 250-400kg/h5hot die face cuttercut:1.5KW6vibrator0.25KW7air blowing+siloblower:3KW* 3pcs;  volume of silo:0.5CBM+1CBM.Packaging and shippingCompany introduction:- BEIERMAN MACHINERY was established by three skilled technician/engineer/sales for plastic extruding line, plastic recycling lines producing, sale and services.  - We have 3000 square meters working house for machines making, there are 40 workers for machines producing and a 5 engineers service team for the machines running test, installation, workers training and machines repairmen. - we have already get CE certificate for our machines and factory, which ensured the high quality level of all machines we are producing - we will attend several home and abroad plastic machines industry fairs to show the customers our quality, machines and services. - there will be 1-2 new produced machines will be showed to the customers every year. - we already established cooperation with the customers from Middle East, Southeast Asia and south America countries. Pre-sales serviceswe will take customers to visit our factory and check the machines quality from airport/bus station/train stations- we will re-designed the machines according to customer's different raw material formulations: driving motors power, electric power model, wall thickness of barrel, control methodAfter-sales serviceswe will offer electric diagram, installation diagram, usage manual- we will offer the customers online introduction to solve the machines problems/send engineers for customers machines installation, running test, workers training, machines repairmen services.- we will offer customers spare parts at cost prices all life long of the machines. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
