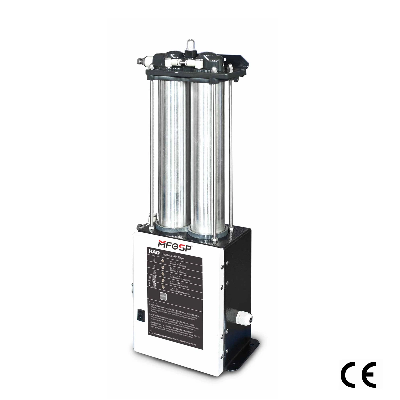

Low noise Air FlowInlet(0.1m³/min) Heatless Air Dryer

Heatless Air Dryer  Performance characteristic:1.With compact structure and stable operation,the range of dew-point variation is ±3ºC and the noise level is lower than 85dB.2.Auto circuit control and safety devices are simple and stable.After operation for 5,000~10,000 hours, the indicator light calls for renewal of corresponding parts to ensure safe handling with optimal   performance.3.High-quality absorbent of 4A molecular sieve.4.Aluminum alloy die-casting is adopted wihich offers good shape,convenience for disassembling and maintainence.5.The throughput is 0.1~0.35 m³/min,working pressure is 0.39~0.98Mpa and the dew-point can reach -40ºC~-60ºC.6.The rational tank design makes the contact time of compressed air and absorbent adjustable which reaches the required dew-point of finished compressed air.7.The amount of regenerative air is adjustable according to operating load of the dryer to make optimal the velocity and time of the flowing air passing through the absorbent coat and bring the performance of the absorbent into full play.8.Rational system configuration makes it possible to remove oil and heavy pollutant in the air before it enters the drying tank.9.High-quality SMC solenoid valve and microprocessor have the function of automatic timing and task switching between the two tanks.Specifications:ModelAir FlowInlet(m³/min)Air FlowOutlet(m³/min)MediumWorking Pressure(MPa)InletTemprature (ºC)AmbientTemperature (ºC)PowerSourceWeight(kg)ExternalDimensionsLxH(mm)ConnectionDiameter(inch)HAD-0106-060.10.086Compressed Air0.39-0.985-502-401Φ,230VAC,50HZ7.5640X217Rc 3/8HAD-0206-060.20.172Compressed Air0.39-0.985-502-401Φ,230VAC,50HZ9720X217Rc 3/8HAD-0356-060.350.3Compressed Air0.39-0.985-502-401Φ,230VAC,50HZ12970X217Rc 3/8Notes:The air tightness test should conform to testing standard of JIS Z 2332.  Related products:/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
