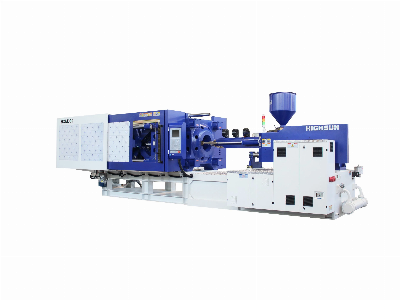

Hxm330 UPVC Plastic Injection Moulding Machine with New Design

HIGHSUN PVC fitting machine, clamping force:218-1100TAdopt the special designed screw & barrel for PVC material, install the air fan for cooling barrel, to avoid the material overheating and coking;Increased bigger grade oil motor to facilitate PVC raw material plasticizing and molding;Enlarge the width of clamping unit cover sheet, to suit PVC fitting molds (core puller cylinder) installation convenience;Supply with special technical solution for PVC injection, not only modify the screw & barrel like others, but also the special solution contains complete hydraulic system and injection unit.  HX(*)330PVCInjection Unit  Screw diametermm65Screw L/D ratioL/D21Injection capacity in theorycm³1062Injection weight(PVC)g1274Injection pressureMPa162Injection rateg/s342Plasticizing capacityg/s58Screw speedrpm160Clamping Unit  Clamping forceKN3300Moving mould-plate strokemm660Max.Mould heightmm750Min.Mould heightmm250Space between tie-barsmm720x670Hydraulic ejector forceKN125Hydraulic ejector strokemm180Ejector numbern13Other  Pump pressureMPa16Motor/Driving powerKW37Heating capacityKW20.35Machine dimensionm7.20x2.36x2.18Machine weightt11.2Oil tank capacityL680/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
