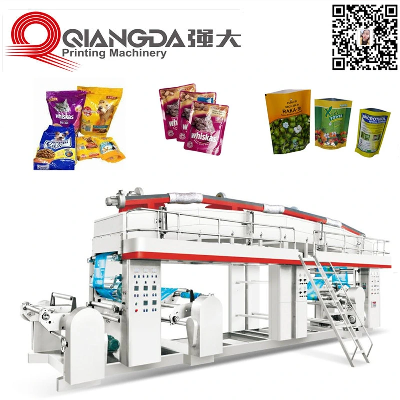

PLC Control High Speed Dry Laminating Equipment Machine for Plastic Film

QDF  Model Series of Photoelectric Error-correction High-speed Laminating Machine  PRODUCT DESCRIPTION                                                                                                Machine is this series are suitable for reel-shape materials such as BOPP,PET,CPP, PE, Aluminum Foil, and paper, 2 layer repetitious laminating, high stretch production, producing high-quality compound materials with high freshness preserving, and boiling & steaming resistance.              MAIN TECHNICAL PARAMETERS                                                                Model QDF-1000Suitable material BOPP,PET,PE,Aluminum foil, Paper etc...Max width of gluing roller1050 mmMax width of laminating roller1050 mmMax width of laminating 1000 mm Laminating layers 2 layers Mechanical speed 10-140 m/min Laminating speed 10-120 m/min  Unwind diameter Φ 800 mmRewind diameter Φ 800 mm Heating length 8 m Oven temperature 120ºCWidth of guide roller 1030 mm Width of machine body 1280 mm Main motor drive 4 KWTotal power About 90 kwWeightAbout 10 TonOverall dimensions9600(L)×2850(W)×3300(H) mm Machine colorRed-whiteMACHINE DETAILS &WORKSHOP                                                                      ABOUT US  ----  WENZHOU QIANGDA PRINTING MACHINERY CO.,LTD       Company Brief IntroductionWenzhou Qiangda Printing Machinery Co.,Ltd was founded in early stage of1980s,having Ruian Qiangda Printing Machinery Co., Ltd .as its predecessor.Presently,it covers an area of 46000m²,has 300 employees,and up to 70 sets of production facilities such as imported digital control machining centers.Specialized in fabricating soft package facilities such as printing presses,laminating machines,splitting machines ,yew paper printers,yew paper bronzing machines.it is among the most powerful and famous enterprise in the same circle in China,and has its unique technique and experience :based on the market demands ,this company is the first to successfully develop a new performance and operation target of which have overtaken the level of domestic similar products.:its products is sold all though China ,and imported to tens of countries and regions such as South-East Asia,Middle -East,Russia ,South American ,and Africa,receiving good graces from users everywhere.ENTERPRISE HONORS                                                                                               PACKING & DELIERY                      CONTACT US                                                                                                                        FAQ                                                                                                                                    1.Are you a manufacturer?Yes, we have been in making printing machine over 37 years. 2.What about the payment term ?Mostly 30%T/T in advanced, the rest need be paid by TT before shipping.if nessary,can do L/C. 3.machine adjustment and installation We can send technicians go to customers' country for machine installation and adjustment.4. Quantity and quality guaranteeQuantity/Quality Discrepancy to destination port during transportation:        In case of quality/quantity discrepancy to destination port in transportation, customer should file claim within 30 days after the arrival of the goods at port of destination. Guarantee period and after-sales services:         12 months since installation finish and machine normal working. During this guarantee period, We will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide spare parts at cost price. Long-term service:       We will charge the buyer the cost price of spare parts beyond guarantee time and provide long-term technical guide.5. Validity: 60 days since the quote dateThanks for your attention! Sincerely hope to work with you in near future!Contact: Mero              Phone:+86-13626778071website:cnqiangda.en.made-in-china.comAdd:Songqiao industry area pingyang zhejiang China p.c:325200/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
