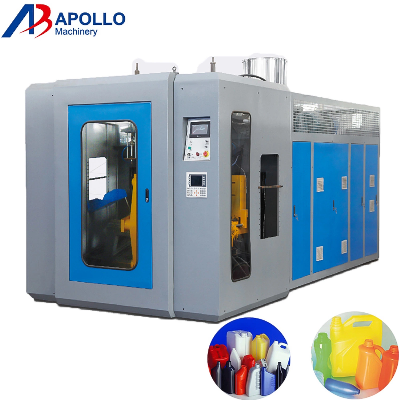

500ml-5L Plastic Blow Molding Machine

ABLB 65extrusion blow moulding machine was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 5L. The features of this machine:(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 5L. (2)Single station two die head design, very easy to operate and maintenance. (3)Most components of the blow moulding machine are from famous world brand. (4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance. (5)Accumulation die head, MOOG parison controller equipped. (6)Bottom blow technology make the product perfect. (7)Auto lubricant system controlled by PLC. The technical parameter:NameUnitsABLB65IMax.product volumeL5Dry cyclePC/H1000Screw diameterMM65Screw L/D ratioL/D24Screw drive powerKW18.5Screw heating capacityKW5-6No. of heating zoneZONE3Output of HDPEKG/H70Oil pump drive powerKW7.5Clamping forceKN65Max.size of moldMM300×370Template sizeMM290×320Mold strokeMM150-500Max. die diameterMM170Blowing pressureMPA0.6Air volumeM3/MIN0.6Cooling water pressureMPA0.3Water consumptionL/MIN50Size of machineL×W×H3.9×2.0×2.6Weight of machineTON5.5The main component of the machine:Electronic PartsNameTraderMicro Computer Control SystemJapanese MITSUBISHI  Temperature ControllerJapanese MITSUBISHI  Intermediate RelayOMRON ContactorSchneider from FranceElectric MotorSimens BedeServosystemDelta / MEGMEETPower supplyTAIWAN MEANWELLTransducerABBHydraulic PartsNameTraderOil pumpTAIWAN HIGH-TECHValveJAPAN YUKENOil pump and connectionJAPAN YUKENSealed partHALLITEAir Control SystemNameTraderCylinderAIRTACAir ValveAIRTAC  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
