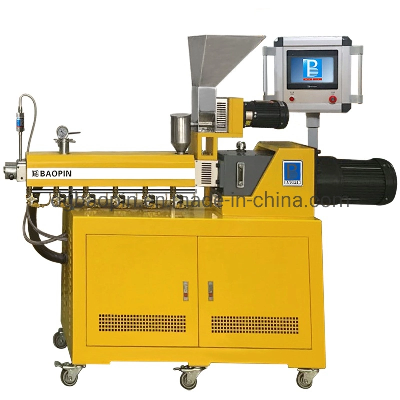

PLC Lab Twin Screw Extruder

PLC lab twin screw extruderThe lab twin screw extruder is with PLC touch screen control system, every cylinder heating zone temperature can be set and controlled. Double screw rotation speed and feed screw speed can be controlled dynamically and intelligently, with intuitive interface, easy operation and high degree of automation.The lab twin screw extruder is appropriate for the mixing processing, experiment of different kinds of plastics and color masterbatch. It is featured by plasticizing homogeneity, color proofing and filling modification.Parameters: Output About 1 - 10 kg/h Screw diameter 20, 25, 30 ( optional ) Length diameter ratio              1:40, other L/D ratio ( 10 - 30 times) optional Screw speed 0 - 120 rpm frequency control Power supply    3 ∮, 5 linesSpecification:1.Direction of screw: Parallel and the same direction2.Compound mode: The compound mode of the screw suite is building block spiral and that of the machine barrel is multi-section.3.Heating zone: 5 aluminum heaters equipped at charging barrel area, 1 heater at handpiece, with the outside covered by safety fan cowl.4.Cooling facility: Soft water circulating cooling is adopted in the whole section of the charging barrel.5.Driving system: Geared motor and reduction gear torque distribution integration.6.Feeding device: 0 to  50 rpm frequency control of motor speed screw force feeding.7.Electric control system: PLC programmable color touch screen, man-machine interface operation system.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
