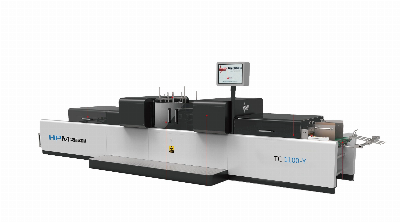

High Precision CE Certificate Window Film Sticking Machine Food Box

Window Patching Machine TC1100   The new TC1100 from Huayue is designed to apply window from roll as well as cut film by pick and place in one working step. It's designed to do roll film window pasting and corner window pasting by pick&place device two jobs at one time .   The high quality used material allows a constant gentle transport of the material by the machine and to get a high output and less waste. Many control and setup functions guaranty a perfect result, even by running with high speed. In the design of the machine was worked specifically on the user-friendliness.   The machine is equipped with a feeder, chain register, vacuum conveyor, shingling belt, facon glue unit, hot glue unit, pick&place film cut cylinder from roll. All functions and set ups are displayed on a wide touch screen.The machine can be designed according to the special product demand of customers.Machine component :Including feeder, main body, shingling belt, electrical cabinets, glue system, pick and place, etc.Compressed air supply: 30 m³/HMin pressure : 0.6MpaVoltage: 380VWorking temperature: 0ºC-35ºCTechnical details:ModelTC1100Max. paste carton size910X1050 mmMin. paste carton size120X150 mmMax. thickness paste carton (E corrugated paper )6 mmMax. thickness paste carton (cardboard paper )200~500g/m²Length of the film(shaped film)50~480 mmWidth of the film(shaped film)70~720 mmThickness of the film(shaped film)0.15mm-0.4mmLength of the film(roll film)60~480 mmWidth of the film(roll film)30~900 mmThickness of the film(roll film)0.03-0.2mmMax. Production speed for shaped film (big size)≤2000sheet/hMax. Production speed for shaped film (small size)≤4000sheet/hMax. Production speed for roll film (big size)≤4000sheet/hMax. Production speed for roll film (small size)≤8000sheet/hThe tolerance for shaped film±0.5mmThe tolerance for roll film±1mmMachine size (L*W*H)8200X2100X1900 mmMachine Net Weight5800 kgLocal Features:1.Time belt feeder system  With carton lifting device of feed system, according to the different thickness, different specifications of the carton all can be adjusted to ensure the carton repaid and stable into the conveyor belt. By servo control system.2. Patent for cold glue exchange system  Repaid replacement of cold glue offset plate can be adapt to the rapid adjustment of different products, the switch only needs to replace the    product can be offset plate. The cold glue roller adopts the servo control system, can adjust the offset position before and after by the computer, fast and accurate.3.Patent for gluing system with carried device  The glue roller is adjustable in height or adjustable to adapt the rapid replacement products. Lift the lifting device can't enter in the carton, o prevent contact with the conveyor belt.4.Patent for glue system can be independent extraction and cleaning.  String of glue system is height adjustable and convenient for cleaning, the system is provided with a transverse guide which can be drawn out for cleaning, saving time.5. Hot glue system  Hot glue system for carton shaped film has a higher positioning accuracy  requirement, with high speed glue guns, photoelectric detection, make sure the shaped film and the carton fixed, prevent with the movement by the carton, high precision for the film6.Patent film frame system  Patent film frame system can be adjusted on all sides, easy adjustment, ensure the high precision.7.Patent for shaped film pick and place system   The first patented shaped film pick and place system in China, especial for thick film, film cut and design, with high speed and precision, using high accuracy reducer; servo control system.8.Roll film systerm  With roll film system, offer more possibilities to solve different types of films, this can do multi window patching at the same time. Adopts servo control system, can adjust the film location and length by computer, reduce error, the speed go fast.9.Delivery system Delivery system was convenient and efficient, lengthened of the workbench, for the glue drying provides more time and improve the quality of finished product.    PERSISTENCE  INNOVATION  COMPETITIVE PRODUCTS  More than 27 years history for producing paper cutting machine, window patching machine and auxiliary equipment.Main drafter for National Paper Cutting Machine and Knife Grinding Machine Standard.Passed ISO9001 Quality Management System, ISO14001 Environment Management System and CE Certification.Strategic Coorperation with USA C&P Company.Products were listed into 2010 National Torch Plan Program.As National High-tech Enterprises in 2009.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
