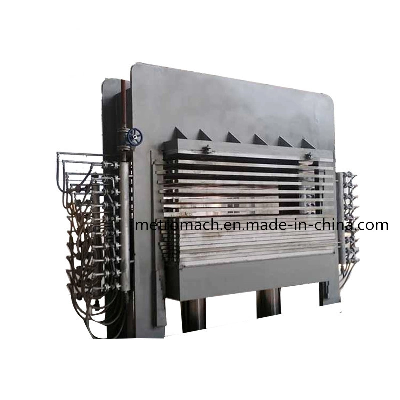

Woodworking Hydraulic Hot Press Machine for Plywood

Woodworking Hydraulic Hot Press Machine for PlywoodProduct Descriptions :1. strong frame2. fast closing speed3. individual control cabinet with touch screen4. good quality electrical element: Simens, Omron, Mitsubishi 5. standard size of platen is 4x8ft, 5x5ft, 3x6ft, or can be customzied6. daylights max. 15, can be customzied. 7. The main structure is welded by thick steel plate, and do special surface dealing  This hot press machine is used for plywood production, its function is pressing the veneers which withglue together under high pressure and high temperature, machine is hydraulic system, heating methodcan be both steam heating and hot oil heating. Technical Parameters:PLYWOOD HOT PRESS MACHINEmodelBY214X8/4-15ZIIDnominal gross pressure400-800TONdirection of feeding plateHORIZONTALdistance between hot platens60-150mm / 80-120mmnumbers of hot platens5-15 layers / 10-20 layersdimension of hot platens2700*1370*52mm2700*1370*42mmnumbers of cylinder2-8pcsdiameter of cylinderΦ220-360mmstroke of cylinder200mmpressurization≤25Mpathe position of cylinderupclosing time 13s / 15-30s / 30-60smax temperature
