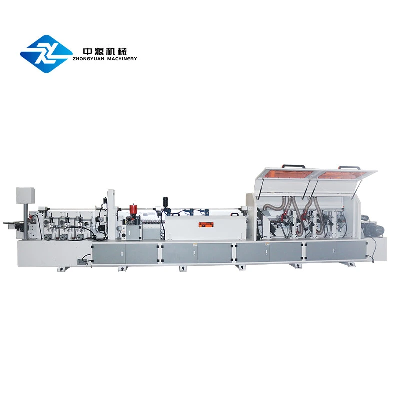

China Board PVC Edge Banding Machine Soft Forming Edging Machine

Product ParametersJCXL shape soft forming edge banding machine:1. 8 functions: pre-milling, gluing, gluing, end cutting, trimming, scraping, polishing, cleaning.2. Upper glue pot, 3000ml, EVA and PUR glue available, one key to change glue, easy to operate.3. 3 units of diamond pre-milling knives, high power milling combination, rough and fine milling, flat cutting surface.4. 8 units of forming hot pressing paste to achieve perfect bonding effect.5. Rough trimming unit, finishing unit, circular arc scraping unit, ensure perfect trimming effect.Model F370 Voltage 380V/50hz/3 phase can customize Total power 41.5kw Air pressure 0.6-0.8Mpa Tank volume 5L Exernal dust collector Φ100*8 Glue pot operating temperature 110ºC-210ºC Edge band thickness 0.52-0.56mm Glue pot 3000ml Feeding speed 12m/min Type of hot melt adhesive PUR EVA Edge band width J type 54mm C type 33mm Plate size ≥250*120mm Plate shape J shape, C shape(customized L shape, bevel straight edge) Edge banding material PVC (matter surface is recommend, no glossy surface is required) Dimensions 8300*1000-1560*1610 Net weight 2700kg Detailed PhotosProduct ApplicationCompany ProfileCertificationsFAQQ1: I already have an edge banding machine and I would like a trimming machine. Do you have any recommendations?A: Yes, we have a matching trimming machine. You can choose the product that suits you according to your actual production needs. Of course, we will also ask you some questions, such as plate size, plate thickness, equipment voltage, number of workers, and so on. With so many types of products, there is always one that is suitable for you. Q2: Can your edge banding machine use PUR adhesive?A: PUR glue has high requirements for glue pots. We recommend using models such as F14620-3700-3350 for up glue pots, depending on your specific needs. Q3: Are you a factory or a trader?A: We are a 20 year source production factory with rich production experience and a total of 8000+customers. We can provide you with thoughtful and accurate after-sales service. Q4: How should I make the payment?A: Firstly, you will pay a 50% deposit as a prepayment, and then we will start producing the equipment. After the equipment is completed, I will send you photos and videos, and you can make the remaining payment. After receiving all the payment, we will arrange for the fastest container to ship to you. You will receive the equipment soon, and I will arrange professional technicians to coordinate with you regarding installation issues. Q5: How long is the delivery time?A: Conventional equipment takes 10-12 days, customized voltage or other parameters take around 30-45 days./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
