Saifan Wooden Pallet Making Machinery Price Nailer Machine

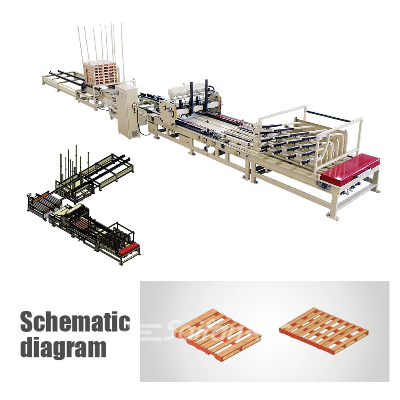

SF9010 Automatic stringer pallet nailing machineSF9010 automatic stringer pallet nailing machine, design for stringer/US pallets, manual load wood, automatic nailing, 8h productivity about 1000pc.The machine consist with three main parts, nailing head, stacking table, out-feeding table.Nailing gun can be N70 or N80, and maximum 4pc nailing gun, distance and height is adjustable. Our machine is computer-controlled, auto control and accurate positioning of nails, auto rotate pallet, auto stack, can greatly improve productivity and precision, can replace manually or traditional old machines, thus can satisfy requirements of factory's expansion.  ModelSF9010Pallet typeStringer palletPallet width700-1300mmPallet length700-1500mmPallet height100-150mmStringer height min. 70mmStringer height70-130mmStringer width30-50mm, +/-3mm toleranceStringer quantity2-4pcFoot & roof board thickness10-25mmProductivity800-1000pc/8h shift (For 1*1m pallet)Nailing gun(Brand Everwin or other brand)4pc N70 or N80 (Pls choose one)1-3pcs nails adjustable, photoelectricity testing for the nailing position.Nailing gun distance manual adjustNailing gun height electric adjustCoil nails1000-3000 nails/coil N70: Nail diameter 2.3-2.8mm, length 45-70mmN80: Nail diameter 2.5-3.3mm, length 50-80mmStacking tablePneumatic table, max. Loading weight 500kg.Gantry servo motor1.5KWStack motor0.75kw*2Hydraulic motor 2.2kwTotal power5.2kwVoltage380v 50HZ 3 phaseAir pressure7-8 barAir tank volume in machine0.3 cubic metersExtra Air tank volumeprepared by buyer2-3 cubic metersAir compressor requiredMin. 2 cubic meters/minElectric componentsSchneider brandPneumatic componentsAirtac brandPLC, touch screenSiemensMachine dimension14000*2900*3500mm Packing size5100*2230*2370mm       2700*2150*1770mm  2700*2220*1750mmMachine weight6840kgFunctionsAutomatic nailing + stacking table+out-feeding tableDetailed ImagesControl cabinetSeparate control cabinet, Siemens touch screen and PLC.  Nailing tableHorizontal nailing table, pneumatic clamping devices and movable stoppers are all steel.Electric pneumatic nailing gunN80 N70 for your choice4pc nail support1000-3000pc coil nail, inside diameter min. 25mmHydraulic stacking tablemax. Loading weight 1000kg.Stringer feeding3 or 4 stringers availableOptional 4-sided corner cutterCut straight corner onlyOptional Heat treatment stamping tableEach side can have 1-2 stamping heads  Nail pattern in one straight lineControl softwareOur own design, easy and convenient to operate.Packing&Shippingnormally packed with plastic film, then load into container.Factory overviewOur CompanyHICAS group is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world.HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter.1.Founded in 2003.2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box.3.Owns 70% Market Share(Nailless plywood box machine) in China.4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.7.Customer and feedback.  FAQQ, Can this machine make Euro/block pallets?A, Can't, block pallet block and board area nail length different, and nail pattern normally not in one line, and the pneumatic nailing gun will easy broken.So we don't recommend.Q, Can the machine big bigger? Means make much bigger palletA, Yes, we can customize base on your requirements.Q, Can this machine make two layers pallets?A, Yes possible, setting in the machine easily.Q, How long time for the machine production?A, Normally 50-90 working days  Q, Is it difficult to maintenance the machine?A, If your company have a technician, then with our guiding videos, then it's not difficult we think, our other customers can handle by themselves, we think you also can. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
