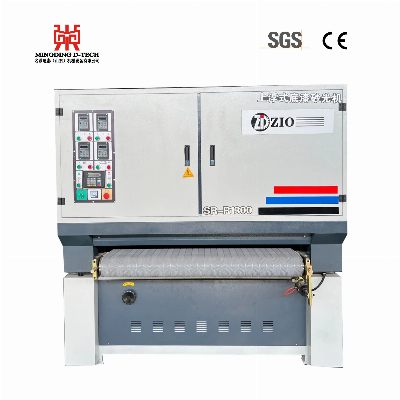

Sanding and Polising Machine for Making Plywood

Automatic Sanding and Polishing Machine 1. It is a new practical and efficient wood product surface processing equipment. The machine adopts high-end imported intelligent equipment to completely improve the accuracy of plywood boards polishing, especially the polishing accuracy of primer.  2.this machine is specially used for interior doors, cabinet doors, furniture and other modeling surface polishing equipment. Suitable for all kinds of solid wood, MDF, veneer faced board and other materials straight line (such as door line, door frame, foot line, phase frame, blinds, etc.), L-shaped wood line and wood class regular surface, shaped surface, plane, and 3D shaped surface, primed wood door, cabinet door surface of coarse fine sanding, grinding, polishing.  3.the machine running speed is adjustable, no noise. Circular longitudinal roll and long roll combination sanding, to achieve no dead Angle sanding.       Product Parameters     Parameter 630mm1000MM1300MM  Maching width     mm300  Disc motor power   kw1.51.51.5  Disc swing motor power  kw0.390.390.39  Longitudinal roller motor power  kw1.51.51.5  Longitudinal roller swing motor power  kw0.390.390.39  Long roller motor power  kw2.22.22.2  Lifting motor power  kw0.370.370.37  Working air pressure  Mpa0.50.60.6  Conveyor speed    m/s5-255-255-25  Disc diameter  mm180180180  Longitudinal roller diameter  mm300300300  Overall dimension  mm  It varies according to the number of shafts ordered  Weight     Details photos    The use of Taiwan imported polishing steel roller, according to the hardness of the sanding material to match different numbers of sandpaper and sisal strips, polishing further refinedThe two sets of longitudinal rollers can swing left and right, and the direction of swing can be opposite, so as to achieve 360 degrees without dead Angle grinding, avoiding leakage and wrong sanding       Vertical disc sander (disc sander can swing left and right) sanding to achieve deep cleaning of the gap, equipped with quick replacement joint, easier to replace the disc sander.    More details about brushing  More Configurations and Models  Double sides surface sanding and polisingSanding belt model Upper floating primer sander Company Certificates     Packaging and Delivery     Company photosMingding D-tech (Shandong) Machinery Equipment Co.,Ltd as one subsidiary corporation of Mingding Group mainly managing the wood machinery business.Mingding owns two registered trademarks,namely ULTRA D-TECH and ZIO,We have our own factory manufacturing the wood machines like wood peeling machine,sanding machine,hot press and edge trimming saw and the machines of plywood/MDF/particle board line.And we have our own research and design team and service team. Our company's business philosophy is honesty and trustworthiness, and customer firstWelcome to MingDing D-Tech,we are looking forward your coming.        /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
