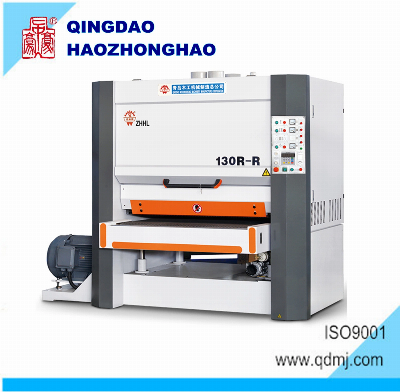

We supply high quality BSG130R-RP Wide Belt Sander Machine1.Product show2.Product DescriptionModelBSG130R-RP(A)BSG130RP-PWidth of sanded panel40-1300mm40-1300mmThickness of sanded panel3-120mm3-120mmSpeed of abrasive belt on 1st unit18m/s18m/sSpeed of abrasive belt on 2nd unit12m/s12m/sFeed speed6-30m/min6-30m/minSize of abrasive belt1330*2500mm1330*2500mmDiameter of 1st rollerΦ240mmΦ240mmDiameter of 2nd rollerΦ210mm--Total power63.62Kw39.82kwPower of abrasive belt on 1st unit37Kw22KwPower of abrasive belt on 2nd unit22Kw15KwConveyer motor power4Kw2.2KwLifting motor power0.25Kw0.25KwBrush motor power0.37Kw0.37KwPressure0.55Mpa0.55MpaCompressed air consumption0.2m³/min0.2m³/minCompressed air volume>8000m³/h>8000m³/hSpeed required for cleaning equipment25-30m/s25-30m/sExhaust tube diameter(sanding roller)Φ200mm*2Φ200mm*2Exhaust tube diameter(brush roller)Φ150mmΦ150mmWeight3200Kg3000KgOverall dimension2600*2020*2130mm2525*2020*2100mmVoltage380V 50Hz380V 50Hz3. Function and Characteristics:(1) It is suitable for calibrating and fine sanding laminate lumber, composite board, particle board, solid wood, panel furniture, bamboo floor, wood door and etc. It is one of the necessary equipment for integrated wood and furniture manufacturing.(2) R-RP model: The first roller is steel roller; the second unit is 85°rubber roller with air sanding pad. RP-P model: The first unit is rubber roller with sanding pad; the second unit is air sanding pad.Steel roller is for calibration sanding and rubber roller is for fine polishing.(3) The pressing roller protects device to keep the board on the feeding table, which keep the operators safe. 4. Standard installation:(1). Sanding belt automatic centering.(2). Pneumatic sanding pad(3). Digital thickness display(4). Brush roller cleaning the panel after sanding(5). Press shoes and press roller guarantee feeding work pieces stably(6). Japanese NSK internal bearing reduce vibration of belt(7). Germany Schneider Electrical component(8). Automatic air blower on sanding belt to prolong the life time of sanding belt(9). Position indicator wheel ensures precise adjustment of sanding pad(10). Automatic centering equipment which control vibrating of abrasive belt along center.5.Machine details6.Company InformationQingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.With more than 50 year experience in making woodworking machines, our main products are Sanding Machine, Panel Saw, Guillotine, Veneer Slicer and Grinder. We firstly put BB1342 vertical slicer into the market in China. We developed BB1135B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9001 in the industry, and also a hi-tech enterprise in Qingdao.We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Veneer Slicer and Grinder.Our website is sandingmachine.en.made-in-china.com; you could get more information about our company and our products. 7.Packaging & Shipping /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
