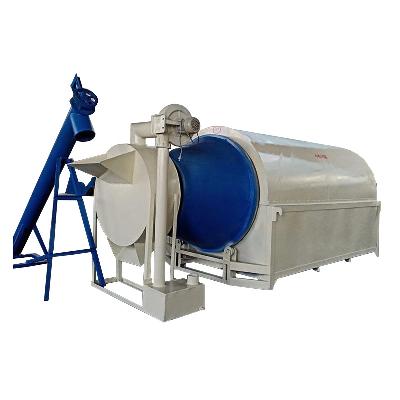

Wood Sawdust Dryer Machine for Biomass Fuel Granulator

Wood Sawdust Dryer Machine for Biomass Fuel GranulatorProduct DescriptionRotary dryer including box and drum two parts, the main body adopts the reverse flow tower type internal circulation structure, the overall modular structure, which make it easy to disassemble and transport, small occupation, good drying quality, low labor operation intensity, low equipment cost.Integrated butt joint design of the heating system and drum, compact structure, low energy consumption, and high thermal efficiency. Small dryers conform to international continuous improvement of material drying quality, reduce energy consumption, reduce losses, and conform to the green, quality, fresh drying concept.Product Parameters  Model Production Drum size Power Heating power Dehumidifying fan AN-200 200KG/HOUR 800*1800*3mm 1.5KW 30KW 370W AN-300 300KG/HOUR 800*2600*3mm 2.2KW 30-40KW 370W AN-500 500KG/HOUR 1000*2800*3mm 3.0KW 40-50KW 370W AN-1000 1000KG/HOUR 1200*3400*4mm 4.0KW 60-80KW 550W AN-2000 2000KG/HOUR 1500*4400*5mm 7.5KW 80-100KW 750W AN-3000 3000KG/HOUR 1500*6000*5mm 11KW 120-150KW 1100W AN-5000 5000KG/HOUR 1800*6600*8mm 15KW 180-200KW 1500W Detailed Photos /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
