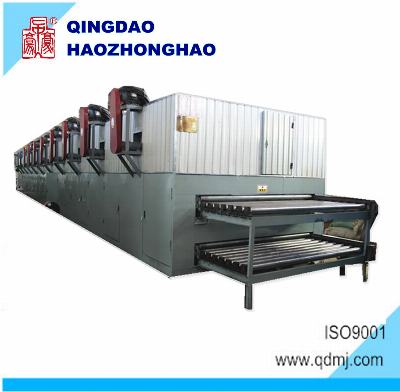

Woodworking Peeling Slicing Wood Veneer Drying Dryer Machine

1- Model BG18262- Working width 2650mm3- Working layers 14- Length of heating section 8×2000=16000mm5- Length of cooling section 1×2000=2000mm6- General motor power  52 KW7- Transmission motor power 4kw×1=4kw8- Motor power of thermal air blower 5.5×8=44kw9- Motor power of cooling air blower 4kw×1=4kw10- Veneer transportation speed 0-12m/min11- Stainless screen 12- Heating medium Steam or Thermal oil13- Steam pressure 4MPa14- Drying temperature 90 -130°C 15- Steam consumption 1T16- Veneer density 600kg/m3(advantage)17- Available veneer thickness 0.2~2mm18- Veneer initial moisture content 35%19- Veneer final moisture content 10%±2%20- Drying capacity 12-18m3/24 hours23- Overall dimension 18 X3.65 X1.75m24- Total weight 17T Drying systemHot-air curtain style:In this type, the air is circulated in (direct)direction, radiator adopt steel aluminum alloy sheets, is heated with steam and oil the hot-air immit into the top and bottom bellows by acentrical fan, and injected with high speed into both sides of the veneers.  The veneers are dried uniformly.Driving system: The drum type: the veneer feed lengthwise, top and bottom rollers are driven by the chain, the veneer advance pressed by the top roller weight.  The veneer is dried when come through the rollers and air nozzle with flat smooth surface.Control systemAccording to the users' requirement, we have manual operation, step less speed change, automatic computer controlling system, the speed can be adjusted when different thickness and different moisture of the veneer is dried.Structure selectionThe  contour structure is metal material (iron plate, aluminum plate, stainless steel ect.) asbestos keep temperature with brick body, we can produce according to your requirement and also remake the old machines.Heating source system:You can choose the heating systems according to your conditions and environments such as hot air stove, steam stove, oil stove. The inlet width can be customised from 1.35meter to 3meter Veneer dried thickness is available in range 0.2mm-5.0mm.Company information  Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.With more than 50 year experience in making woodworking machines, we got license from Italian DMC Corp. in 1985 to produce wide belt sanders. We firstly put BB1342 vertical slicer into the market in China. We developed BB1335B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9000 in the industry, and also a hi-tech enterprise in Qingdao.Packaging & ShippingDelivery: About 30 days after receive the down payment.FAQWhat is the Warranty of machine?Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.   What is the Max working width of Dryer?Usually is 1500-2800mm. Also It is changeable according to clients requests.  How to contact me?  web: sandingmachine.en.made-in-china.com   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
