25t Hydraulic Hot Press for High Melting Temp Thermoplastic Materials

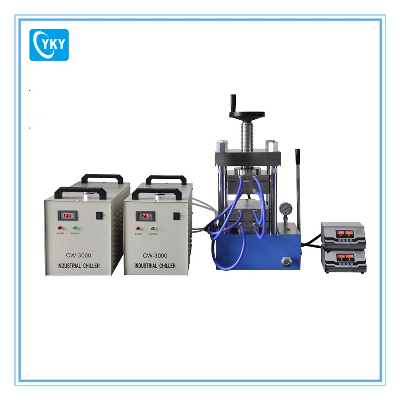

500°C Max. -24T Hydraulic Lamination Hot Press ( 90x90 mm area) with Dual Temp. Controller - EQ-HP-100IntroductionHP-100 is CE certified and UL-ready 500° Max. compact lamination hot press, which consists of a 24T hydraulic press with two heated platens. The temperatures of the heated platens are controlled by two digital temperature controllers separately up to 500°C.  The platens ( 90x90 mm area)  are made of  harden Cr12MoV alloy with flat surface. Water cooling jackets are installed with heating platen that allow heated plate get faster cooling. One pressure gauge (250 KN) is also mounted to monitor the pressure applied on the platens. It is an excellent tool to prepare polymer and ceramic samples.  SpecificationMax. Working Pressure24 Metric Tone    ( RT -  450 °C )18 Metric Tone    ( 450 - 500 °C )Pressure GaugeMeasuring Accuracy is  +/-1.25 KNHeated Platen Area Platen Area:90mm x 90mm Material: Headen Cr12MoV alloySurface: Flating with CNC grinding Max. Travel Distance 50mm Do not raise the bottom cylinder (piston) more than it's maximum traveling distance. (50mm)Max. Working Temperature450°C continuous with water cooling500°C for less 30 minutesHeating Rate10°C/min averageWater Cooling JacketTwo water cooling jacket are built on back of top and bottom heating plate separately with 1/4" water pipe connectors. Such a configuration allows you cool the sample as soon as the hot pressing process is completed. Please consider to use one recirculation water chiller to save water and protect the environment Temperature ControlTwo digital controllers are installed in one box with 30 segment programmable and auto-tune factionTemperature accuracy ±1°C.Power Requirement208 - 240VAC, 50/60Hz, single phase3200 W max.20A circuit breaker is required for 220V,  5' length power cable included, but no plugComplianceCE Certified for the whole furnaceShipping Weight150 lbsZhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.Our main products include: tube furnace, muffle furnace, plasma cleaner, vacuum furnace, atmosphere furnace,CVD system and customizedlab equipment.Welcome you come to visit us.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
