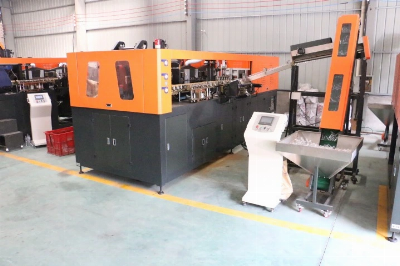

6 Cavities 9000bph Plastic Can Bottles Pet Blow Molding Machine

6 Cavities Plastic can Bottles Pet Blow Molding MachineModel type:Q9000Product max volume: 1LSuitable for blowing bottles between 150ml to 1000mlNecessary auxiliary devices: High pressure air compressor, High pressure air filter, Low pressure air compresor, low pressure air filter, Chiller, Cold DryerAutomatic PET Bottle Blow Moulding Machine is a high speed linear blow molding machine which is developed and manufactured by our Company using the most advanced bottle blowing technology in the world. Owing to the machine's high degree of automation, high production efficiency, high safety, high stability and reliability, the products made will not be contaminated in any intermediate steps, and it can be matched up directly with the production line of filling and can be widely used in production of mineral water, carbonic acid beverage, juice, tea and heat-resistence bottle product.Machine parameter:                         ItemQ9000Bottle type specificationCavity6Theoryoutput9000Max.volume1LBottle mouth maximum overall diameter28-38mmBottle biggest diameter65mmBottle maximum height280mmPower specificationsLight tube quantity24pcsLight tube power1.25KWMaximum heating power30KWAll electric machine installation33KWActual consumption16.5KWAir pressure specificationWork pressure7-9kg/cm2Low-pressure gas consumption1600L/minBlow bottle pressure25-35kg/cm2Higher -pressure gas consumption3000Ltr/minForzen water specificationWork pressure5-6 kg/cm2Temperature range10Consumption6000kcal/hrForzen water flow88L/minMachine specificationSize of the machine4.75x1.6x1.9Weight of the machine5tonTECHNICAL TEAM  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
