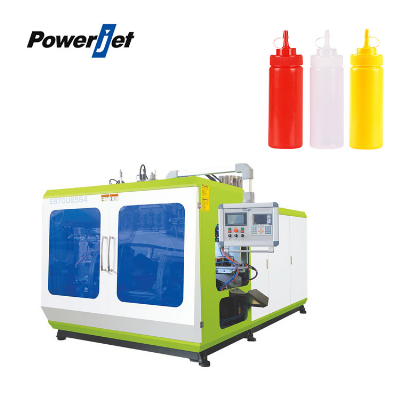

Powerjet PE Plastic 1L 100g Bottles Product Extrusion Blow Molding Machine

Product DescriptionEB70U High-speed Double Station Extrusion Blow Molding MachinePowerjet Single Station Extrusion Blow Molding Machine EB70U is specialized for manufacturing bottles and containers with Max 7L.Max Bottle Capacity - 7(L)Clamping Force - 85/110(KN)Extrusion Weight(HDPE) - 80~120(kg/hr)Applications - Wide Range Of Bottles For Daily necessities, toiletries, beverages, water tanks, laundry detergent/shower gel/motoroil bottles, etc Detailed PhotosFEATURES:1:Toggle balance clamping structure, with platen opening & clamping and mold platen movement by linear guide, to achieve low friction and high speed.2 Based on the Finite Element Analysis design, and platen, toggle, and platen frame are made in high-intensity nodular cast iron.3:High-speed mold clamping oil cylinder with differential speed function, and high-speed mold moving cylinder with special anti-shock cushion valve structure.4:Specially designed to screw with a high L/D ratio ensures good plasticizing and stable extrusion; high precision and no part line die head guarantees customers' top quality requirement.5:Multi-screw & multi-die heads can be adopted to improve the quality of the product and lower the cost of material.6:Multiple-way PID-controlled temperature heating is precise and stable.  Product ParametersMODELUNITEB70U75SEB70UW75SEB70U85SEB70UW85SEB70U75S-plusEB70UW75S-plusEB70U85S-plusEB70UW85S-plusMax.ProductL771010Clamping ForcekN85/11085/110160160Max.Mold Size(WxH)mm480x450480x460mm580x440580x420Screw DiametermmΦ75Φ85Φ75Φ85Screw L/D RatioL/D24242424Screw Rotary SpeedRPM65606560Extrusion Weight(HDPE)kg8012080120Extrusion Motor PowerkW22302230Pump Motor PowerkW11111111Heating CapacitykW19211921Operation PressureMpa0.6~0.80.6~0.80.6~0.80.6~0.8Air Consumptionm³/min3.03.03.03.0Cooling Water Consumption(25ºC)L/min100100100100Machine Dimension (LxWxH)mm4220x3170x26004880x3490x2700Machine Weightkg6000620061006300CertificationsPackaging & ShippingTrade ShowSales & Service Network/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
