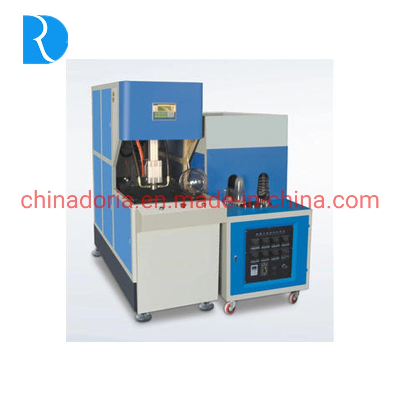

Semi-Automatic Stretch Blow/Blowing Molding Machine PMMA/PC/PS Lampshade

D-R800-G semi-automatic stretch blow moulding machine for lampshade  https://chinadoria.en.made-in-china.com/product-list-1.html2. 1. Specification of D-R800G:2.1. Main frame dimension: 2300(L)*990(W)*2300(H) mm;       Heater  dimension: 2700(L)*650(W)*1660(H)mm;2.2. Theoretical output: 85-90pcs/H;2.3, The main structure is welded by Q235B 200*70 channel steel and heater is made of 40*40*1.5 square tube. the surface is treated with paint ejection. The whole structure is delicate and durable.2.4 Mould clamping system is processed precisely to ensure the stability.2.5, Main pneumatic components adopt Germany brand, others are from domestic.2.6, Preforms are rotating in the heater to ensure being heated evenly.2.7, PLC panel adopts Bothfit to make the machine stable and reliable.3. 0, Low pressure air compressor (V-2.0/12)3.1,packing size:2500*950*1600mm;       size:2489*942*1560mm; 3.2, Motor power: 15KW;                   3.3, weight:500KG;3.4,Air flow:2.0M3/min;3.5,Max air pressure:2.0MPa;4.Air receiving tank 0.6 m3/3.0MPa:4.1. work pressure: 3.2MPa;4.2, temperature: 100ºC;4.3, volume: 0.6m3;5. T/C air filter5.1, rated capacity: 2Nm3/min;5.2, maxima working pressure: 3.0MPa;5.3, temperature of air flow≤50ºC;5.4, filtrate precision of T air filter≤3μm;     filtrate precision of C air filter≤1μm;5.5, weight: 2.3KG;6. Specification of D-R800G machineITEMUNITTECHINICAL DATA (D-R800-G)Product material PET/PMMAcontainer volumeL  6-30(1-cavity)theoretical outputpcs/hr80-90pcsPreform lengthmm15-460preform inner diametermm15-200max.mould plate dimension(L*W)mm280 * 550max thickness of mouldmm450clamping forceKN330mould opening strokemm330air compressorM3 /Mpa  ≥0.60/3.0                  air pressure for blowingKW7.5low pressure compressorM3 /Mpa kw  ≥0.8/1.25                                        15               powerKW15voltage/frequencyV/HZ380/240/110/50-60                            (3-phase)main machine(L*W*H)M2.3*0.99*2.3main machine weightT1.1heater(L*W*H)M2.70*0.65*1.66Overweight 1800KG+620KG    7. Picture of D-R800-G:  8. About us:Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience. The main products are following: Automatic & semi-automatic blow moulding machine, PET preform, plastic injection machine, preform moulds, bottle moulds, commodity moulds and correlative products. Based on "Quality is first; Honor for the honest", we always continue development and innovation to witness the maturity of industrial chain of products and improve the quality of products continually. Untiring effort makes the products, especially for 5gallon blow moulding machine, 5gallon PET preform and commodity moulds are widely accepted by our customers.  We have good market in South America, Africa, Asia, Europe, North America, and our many customers from Canada, Brazil, Thailand, Chile, Algeria etc.Meanwhile, the output of our main product automatic 5gallon blow moulding machine could achieve 600pcs/h which is the breakthrough of our company. Welcome everyone to visit us, we hope we will have good chance to cooperate!10. Location:No.362 Lingxiage VillageXicheng Street, HuangyanTaizhou, ZhejiangChina    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
