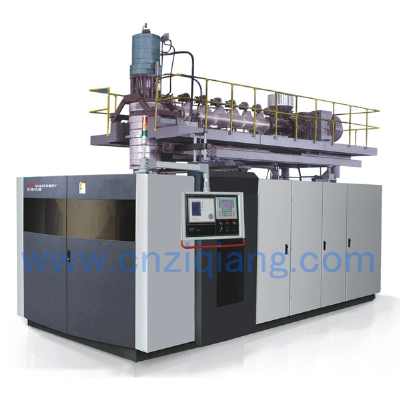

160-300 Litre Plastic Drum Extrusion Blow Molding Machine

160-300 Litre Plastic Drum Extrusion Blow Molding MachineThe 230L-300L drums, tool boxes and auto parts series consists of ZQB-250A and ZQB-250B etc., which can be used for producing drums, tool boxes and hollow parts of all kinds. Materials of PE, PP, and ABS can be used. Maximum capacity of accumulator head can be 12L while volume of products can be 120L. Its control system adopts closed loop control imported from Europe and hydraulic system is pressure-flow double proportional control equipped with variable plunger pump to ensure fast and smooth operation of the machine and energy consumption of the hydraulic system can be reduced by 30% or above, saving considerable electricity. 160-300 Litre Plastic Drum Extrusion Blow Molding Machine,Setting, Clamping: Double station+Hight-precision guide+large arm cylinder axle Extrusion system: Hard gear surface reducer+Japan inverter Die system: Central-incoming extrusion die with special steel Hydraulic system: Japan hydraulic valve seal and proportional control Control system: Japan PLC+Imported HMI+PLC automatic. 160-300 Litre Plastic Drum Extrusion Blow Molding Machine,equipment information. Specification ZQB-250AZQB-250BMaterial PE,PP^PE,PP^Max.container capacity   L230300Number of dieset11Outputpcs/hr260260Machine Dimensionm7.6×3.0×5.27.8×3.2×5.5Total weightton3640Accumulator head  ZQB-250AZQB-250BAccumulator capacityL2222Power of die heatingKW4646Number of heating zonezone55Die diametermm600600Injection pressureMpa88Max.injection speedKg/sec22Clamping Unit ZQB-250AZQB-250BClamping forceKN760880Platen opening strokemm700-1800700-1850Platen sizemm1300×16201360×1900Max mould sizemm1200×17001260×1980Mould thicknessmm250250Extruder Unit ZQB-250AZQB-250BScrew diametermm120120Screw L/D ratioL/D30:1-32:130:1-32:1Extruding VolumeKg/hr300300-400Screw rotation rater/min6-5610-86Extruder heating powerKW3636Extruder driving powerKW13290-132Power consumption ZQB-250AZQB-250BDriving powerKW202180-202Heating powerKW9898Note: The specifications are subject to change without notice for the further improvement. Note: Custom production accepted. Any client idea tried.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
