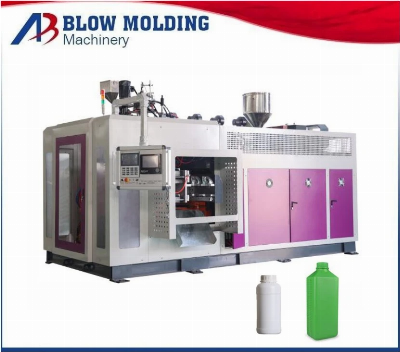

5L-10lpe Plastic Bottle Barrel Drum Extrusion Blow Molding Machine

Company Profile Product DescriptionABLB75II full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 3.5L. This design is low power consumption and very stable.The features of this machine:(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 7.5L.(2)Single station single die head design, very easy to operate and maintenance.(3)Most components of the blow moulding machine are from famous world brand.(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.Product ParametersTechnical Parameters: ( ABLB75 )Max. Product volume7.5 liters(single die head)Screw diameter75mmScrew L/D ratio24 L/DScrew drive power22 KWScrew heating capacity7 KWNo.of heating zone4 zonesOutput of HDPE100KG/HOil pump drive power11 KWClamping force78KNMax.size of mold148-568mmMold stroke400 X 450mmMax.die diameter160mmBlowing pressure0.6 mpaAir Volume0.8 M³/MINCooling water pressure0.3mpaWater consumption80 L/MINSize of Machine3.8x2.2x2.8mWeight of machine8 ton  Detailed PhotosOur AdvantagesContact us/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
