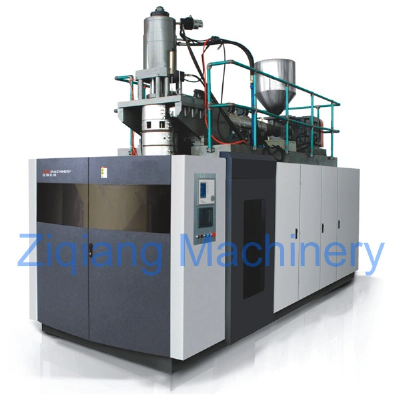

PC 5 Gallons Extrusion Blow Molding Machine (ZQB-82PC)

PC 5 Gallons Extrusion Blow Molding MachineSpecially for 3 gallon and 5 gallon water barrel and lamp cover with PC Material. Setting: Clamping: Double station+Hight-precision guide+large arm cylinder axle Extrusion system: Hard gear surface reducer+Japan inverter Die system: Central-incoming extrusion die with special steel Hydraulic system: Japan hydraulic valve seal and proportional control Control system: Japan PLC+Imported HMI+PLC automatic. PC 5 Gallons Extrusion Blow Molding Machine,equipment information. Specification ZQB-82PCMaterial PCMax.container capacity   L25Number of die set1Output pcs/hr500Machine Dimensionm6.5×2.4×4.7Total weightton12Accumulator head    ZQB-82PCNumber of die heatingzone4Power of die heating KW8Max die-pin diametermm150Accumulator capacity L1.8General dimensionm1.2×0.5×0.42Clamping Unit  ZQB-82PCClamping forceKN220platen opening strokemm330-780platen size mm740×630Max mould sizemm550×660Mould thicknessmm350-420Extruder Unit ZQB-82PCScrew diametermm82Screw L/D ratioL/D38:1Extruding VolumeKg/hr150Number of heating zone zone8Extruder heating power KW20Extruder driving powerKW34Power ZQB-82PCOil pump drive powerKW45Fan power for screwKW0.9Total powerKW90Air pressureMpa1.2Air consumptionm3/min1.0Average energy consumptionKW42Note: The specifications are subject to change without notice for the further improvement. Note: Custom production accepted. Any client idea tried. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
