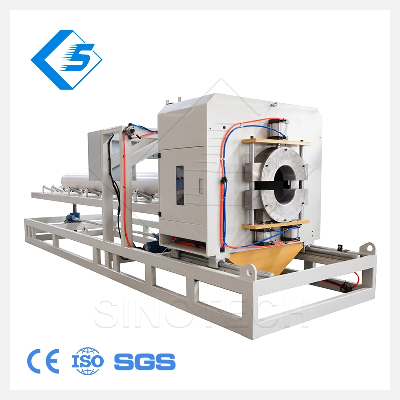

Product DescriptionSinotech Large Diameter PVC Pipe Cutting and Belling MachineSinotech large diameter PVC pipe cutting and belling machine specifically designed for large size PVC pipes from 250mm to 400mm, to meet the requirements of different customers. The specially designed cutting box can cut relatively short pipes, and the minimum length can reach 300mm.The double-station heating system adopts advanced temperature control technology to realize high-precision and stable temperature control.It has features of fast heating, excellent energy saving and high efficiency. You can adjust the size and angle of the die to suit different sizes and thicknesses of pipes.Machine ApplicationBelling Scope:Φ250mm-Φ400mmUse Voltage:AC 380V; 50Hz (Or according to customer's request)Central Height:According to customer's requestAdvantages of Full Auto PVC Pipe Large diameter Pipe Cutting and Belling Machine1) It is specifically designed for large size PVC pipes from 250mm to 400mm, to meet the requirements of different customers.2) It can not only used in line with the pipe production line but also can be used alone.3) The characteristics of this machine is full automatic, stable and reliable, easy to operate.4) It adopts vacuum calibration inside the mould and force air/water cooling outside. Product Parameters Main Technical Parameters pipe expand range(out diameter) Φ280-400mm Belling type R type Voltage 380V/50HZ Quantity of heater 2 Heating power 1.8kw*13+0.5kw=23.9kw Heating method Heating pipe (13 pcs) highest temperature in heater 280ºC Air bag 3 pcs Air pressure 0.4~0.6Mpa Cooling method Water cooling Cooling water pressure 0.2~0.3Mpa R type forming method Vacuum pump system Material of R mold Higher Block: 3Gr13 Slider: 40Gr Nitriding Other part: 45# Steel, then electroplating Material of U mold 45# Steel, then electroplating Total power/Capacity 58kw Pipe length 3-6m Center height 1150mm±50mm Machine set weight 5.2T Dimension of machine 8050x3750x2150mm R type U type F Type Detailed Photos 01 The Specially Designed Cutting Box Can Cut Relatively Short Pipes, and the Minimum Length Can Reach 300mm. 02 The double-station heating system adopts advanced temperature control technology to realize high-precision and stable temperature control.It has features of fast heating, excellent energy saving and high efficiency.03 Equipment operators and the expanding circle of all movements by PLC controller to achieve automatic control, which is convenient and easy to operate.04 After shaping, both vacuum calibration technology inside the mould and force air/water cooling outside of pipe are adopted to ensure precise belling size. Floor Plan Connection of R-Type Pipe Belling Customer PraiseCompany ProfileCertificationsFAQQ: How about your after-sale service ?We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.Q: What is the lead time?For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)Q: What is the warranty period for your machine ?12 months warranty for components and technical support .Q: Do you provide custom machines?Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer's needs.Q: How can we install the machine when it arrives?We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.Q: What's the advantage of SINOTECH?We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
