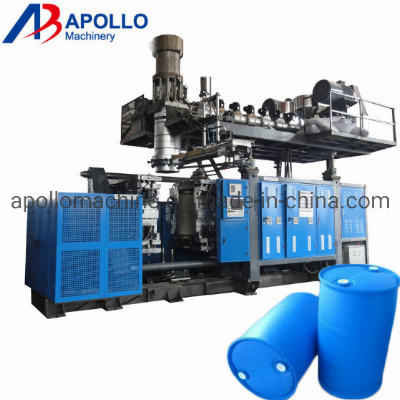

250L Big Plastic Drum HDPE Blow Moulding Machine

Tanks Extrusion Blow Molding Machine ABLD120: ABLD120 plastic drum making machine was specially designed for making plastic water tanks,chemical drums,plastic cans, lubricant oil drums,plastic drums, plastic toys and other plastic containers not over 230L. The features of this machine: (1)It is suitable for producing PE,HDPE,PP so on,plastic containers and bottles in all shapes are available,the max.product volume is up to 230L. (2)Single station single die head design,very easy to operate and maintenance. (3)Most components of the blow moulding machine are from famous world brand. (4)Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance. (5)Accumulation die head, 100 point parison controller equipped. (6)Bottom blow technology make the product perfect. (7)Auto lubricant system controlled by PLC. (8)Equipped with germany servo system , can save more than 40% power and very stable . Perfect function with economic investment. Max. Product volume220 litersDry cycle300pc/hScrew diameter120mmScrew L/D ratio33 L/DScrew drive power132 KWScrew heating capacity36 KWNo.of heating zone6zonesOutput of HDPE320 KG/HOil pump drive power37KWClamping force900 KNMax.size of mold1400X1600mmMold stroke700-1600mmMax.die diameter580mmDie heating power36 KWDie heating segments6zonesBlowing pressure0.8mpaAir volume1.6 M³/MINCooling water pressure0.3mpaWater consumption180 L/MINSize of machine7.5 X 3.5 X 5.5mWeight of machine36ton/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
